KleapCap T line PVDF membrane Capsule Filter Bio Burden Reduction Grade

5) KleapCap T line PVDF membrane Capsule Filter Bio burden Reduction Grade

Summary

Order KleapCap T line PVDF membrane Capsule Filter Bio burden Reduction Grade from MS for compact in line PVDF filtration where skid space and maintenance access are critical. Hydrophilic PVDF media provides broad chemical compatibility and low extractables intent. The capsule is produced without adhesives, binders, or surfactants and is rinsed with high purity water to help reduce extractables and downtime.

Introduction

Order KleapCap T line PVDF membrane Capsule Filter Bio burden Reduction Grade from MS when you want an in line capsule geometry that simplifies piping and fits tight installation spaces. The T line design is often chosen to improve layout efficiency and keep filtration points accessible for changeout. Hydrophilic PVDF media supports stable wetting behavior in many aqueous processes, while the clean manufacturing approach supports downstream cleanliness.

Application Notes: Designed for Inline Skids

Skid filtration in beverages: T line layout helps simplify integration in crowded filling and transfer systems.

Fine chemical transfer: inline format supports quick replacement during campaign changes.

Pharma utilities: used where a compact footprint helps standardize multiple skids.

Installation Checklist for T-Line Capsules

Confirm inlet and outlet orientation and flow direction.

Keep clearance for vent access and removal path.

Tighten connections per SOP and leak check.

Flush until your acceptance criteria are met.

If required, run integrity test through vent port and record results.

Filter Area and Materials

Filter Area: 6000 cm² / 10"

Filter Media: Double layer hydrophilic PVDF

Hardware: Polypropylene

Integrity (Wetted membrane)

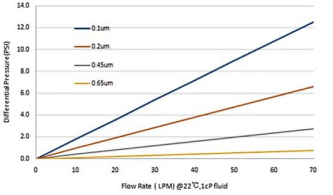

Typical Flow Rate

Typical Flow Rate in gas/air, 10" (place curve here)

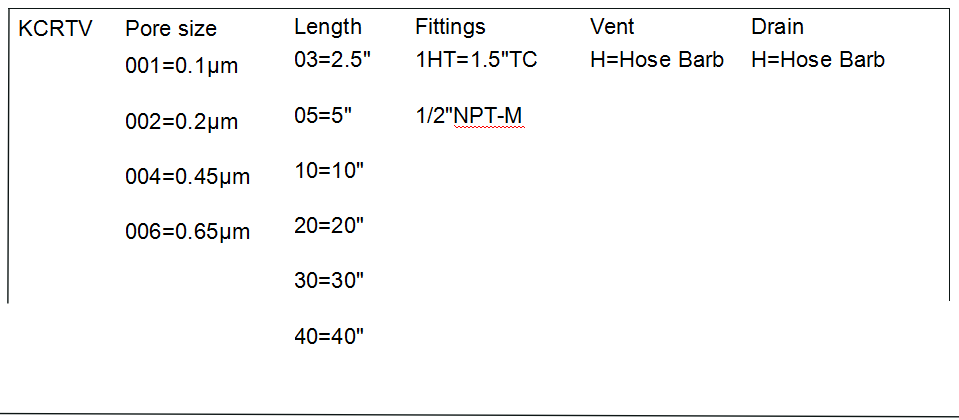

Ordering Information

To place an order for KleapCap T line PVDF membrane Capsule Filter Bio burden Reduction Grade, confirm pore size, T line orientation/connection, and length specification. MS will confirm the interface details to avoid installation mismatch.
