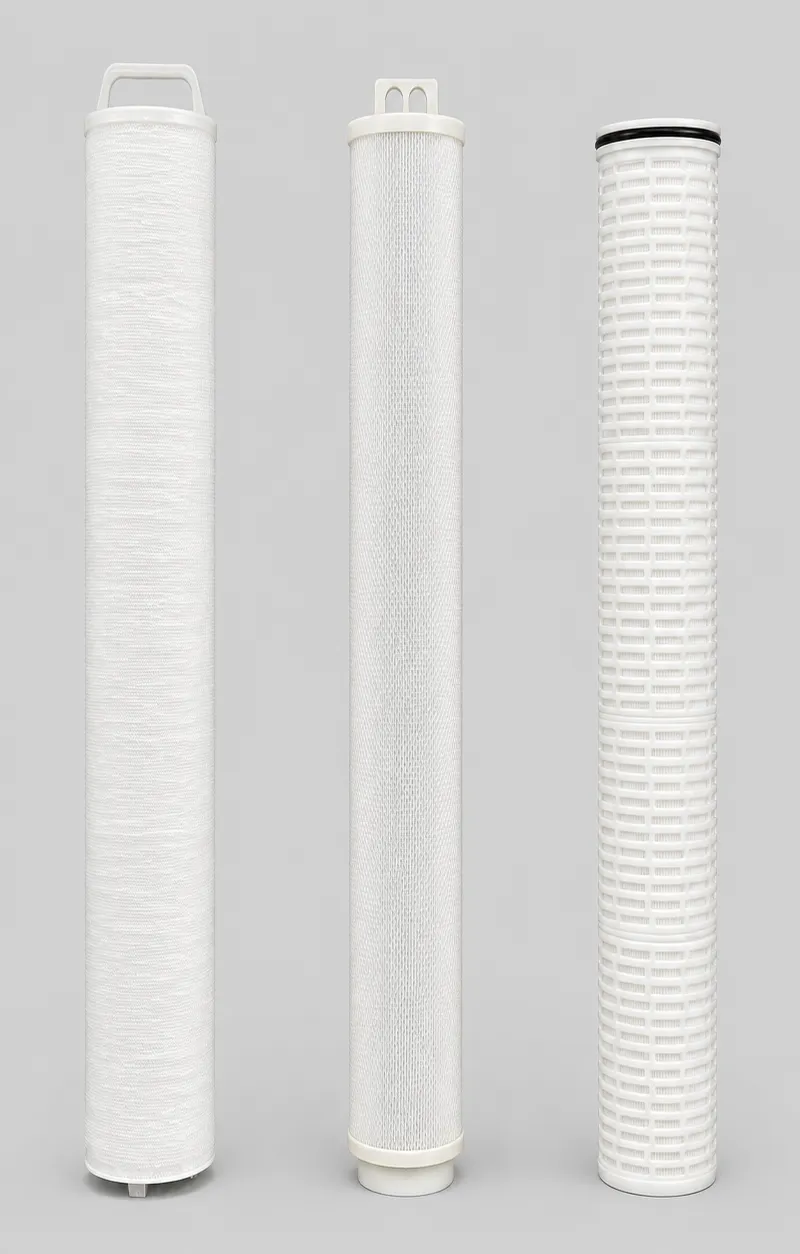

China Wholesale High Flow Filter Cartridge Manufacturer

MS factory designs and manufactures High Flow Filter Cartridge products that solve a core challenge in large scale water treatment: processing high volumes of liquid while maintaining stable differential pressure and long service intervals. Our expanded diameter pleated structure delivers up to 11 m² of effective filtration area in a single 60 inch element, reducing housing count and lowering capital and operating costs for end users.

Every cartridge from MS factory uses thermally bonded polypropylene or glass fiber media without adhesives or binders. The all polypropylene hardware provides broad chemical compatibility across aqueous solutions, mild acids and bases, and many process chemicals. Available in 20 inch, 40 inch, and 60 inch lengths with absolute or nominal removal ratings, these cartridges serve reverse osmosis prefiltration, seawater desalination pretreatment, food and beverage water filtration, oilfield produced water treatment, and power generation condensate and makeup water filtration.

How High Flow Cartridges Reduce System Footprint

Purpose built geometry.

Media pack geometry, pleat density, and core structure are optimized for significantly higher flow rates per element than standard cartridges.

Larger outer diameter.

More pleats per circumference and an open inner core minimize pressure drop across the media.

Single cartridge replacement.

One high flow element replaces multiple conventional 2.5 inch diameter elements, reducing housing size, piping complexity, and changeout labor.

Buyers select by removal rating type, media material, length, and connection style. Absolute rated high flow cartridges are chosen for defined particle retention such as RO membrane protection. Nominal rated high flow cartridges are preferred for economical prefiltration and high solids loading duties.

Engineering and OEM Support

Custom configuration.

Pleat density, media composition, core design, and end cap connection style adjustable to match specific housing dimensions.

Technical documentation.

Dimensional drawings, flow versus differential pressure performance data, and compatibility guidance for system integrators.

OEM and private label.

Custom branding, packaging, and connection configurations for water treatment system builders and distributors.

Staged filtration design.

Upstream nominal rated cartridges paired with downstream absolute rated elements for heavy particulate loading processes.

Where High Flow Cartridges Deliver Value

Reverse osmosis.

Protects expensive RO membranes from particulate fouling, extending membrane life and reducing cleaning frequency.

Seawater desalination.

Handles large pretreatment volumes with fewer housings, saving valuable plant floor space.

Food and beverage.

Reliable water filtration for ingredient water, bottle washing, and process water applications.

Oilfield operations.

Produced water and injection water filtration under challenging conditions.

Power generation.

Condensate polishing, makeup water treatment, and cooling water side stream filtration.

Whether your application requires a single 20 inch cartridge for a small RO skid or a multi vessel 60 inch installation for municipal desalination, MS factory can configure a consistent High Flow Filter Cartridge solution with verifiable quality and stable supply.

Quality Systems and Compliance

1.Raw polypropylene and glass fiber media qualified against material specifications before production.

2.Media pleating, core assembly, end cap bonding, and final inspection performed under controlled conditions with documented parameters.

3.Each cartridge undergoes dimensional inspection and integrity verification before shipment, with results recorded against unique batch identifiers.

4.Materials comply with FDA 21 CFR food contact regulations and EU 10/2011 directives for applicable food and beverage contact applications.
