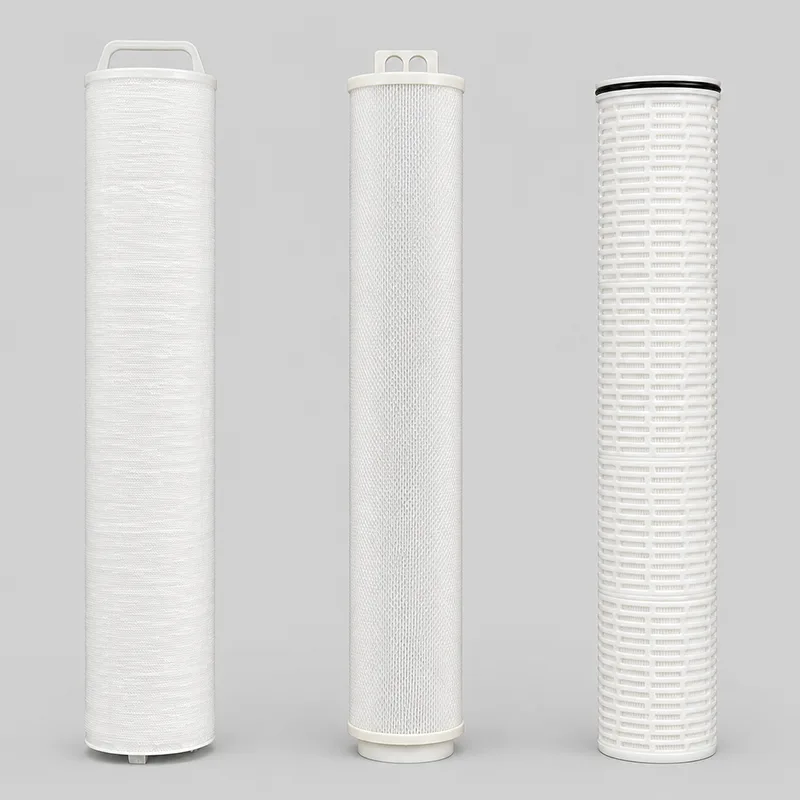

JFC High Flow Cartridge Filters

Source JFC High Flow Cartridge Filters from MS factory when your high volume filtration system requires a cartridge that maximizes flow throughput and service interval while maintaining dependable particle removal performance. The JFC series uses pleated polypropylene media in an all polypropylene hardware design with thermal bonding sealing without adhesives or binders. This construction provides broad chemical compatibility, low extractables, and consistent filtration performance across a wide range of aqueous process fluids and industrial chemicals.

The JFC series is optimized for maximum flow capacity and service life in high volume applications. The expanded diameter pleated design delivers up to 11 m² of effective filtration area in a 60 inch element, significantly more than conventional 2.5 inch diameter cartridges. This large effective area translates directly into higher flow rates per cartridge, lower differential pressure across the media, and longer service intervals between changeouts. For plant operators, this means fewer cartridges per system, reduced changeout labor, and lower total cost of ownership for high volume pretreatment and process filtration applications.

Technical Specifications

Construction Materials

• Media: Polypropylene, Glass fiber

• Support: Polypropylene

• Hardware: Polypropylene

• O ring: EPDM, Viton, Silicon, NBR, TEV

Key Design Features

•  Maximum flow capacity. Expanded diameter pleated design delivers up to 11 m² effective area, supporting high flow rates and reducing elements required for large scale systems.

•  Extended service life. Pleated polypropylene media provides high dirt holding capacity, extending service intervals and reducing changeout frequency.

•  Broad chemical compatibility. All polypropylene construction supports compatibility across a wide range of aqueous solutions, mild acids and bases, and industrial process chemicals.

•  Thermal bonding, no adhesives. Media pack sealed without adhesives or binders, minimizing extractables and supporting clean filtration performance.

•  High dirt holding capacity. Graded pore structure captures contaminants through the depth of the media, supporting longer service life in high solids loading applications, making JFC High Flow Cartridge Filters a cost effective choice for high volume industrial filtration.

Industry Applications

•  Reverse osmosis prefiltration. High flow capacity prefiltration protecting downstream membrane elements from particulate fouling. Large effective area supports long service intervals in high volume RO pretreatment trains.

•  Seawater desalination pretreatment. Delivers high flow capacity needed for desalination pretreatment while maintaining stable differential pressure and dependable particle removal across service cycles.

•  Food and beverage water filtration. Reliable high volume filtration with food contact compliant materials and low extractables performance for ingredient water, bottle washing, and process water.

•  Oilfield produced water and injection water. Handles produced water and injection water filtration with robust construction and broad chemical compatibility for challenging process conditions.

•  Power generation water treatment. Dependable high volume filtration for makeup water treatment, condensate polishing prefiltration, and cooling water side stream filtration, making JFC High Flow Cartridge Filters suitable for high throughput power plant applications.

Food Safety Compliance

Every wetted material in the JFC series has been manufactured to meet FDA food contact requirements codified in 21 CFR, and both the polypropylene media and hardware components conform to EU Directive 10/2011 standards for materials and articles intended to come into contact with foodstuffs. This compliance profile supports deployment across food and beverage process water loops, ingredient water systems, and beverage production lines where food contact material documentation is required for regulatory audits and customer qualification.

Quality Documentation and Supply Assurance

Quality records for the JFC series from MS factory cover dimensional inspection, integrity verification results, and batch traceability linking raw material lots to shipment records. Material compliance statements are available on request for customer validation files and regulatory compliance requirements.

For high volume industrial filtration operations, MS factory delivers JFC cartridges with in house media manufacturing and assembly capabilities that support flexible production planning, dependable batch consistency, and reliable delivery for standard configurations. We collaborate with buyers to establish safety stock thresholds and recurring replenishment schedules that align with production planning and maintenance cycles. Our O ring material options, connection style choices, and OEM private label programs support customization for specific application requirements and customer branding needs. For high volume industrial filtration operations that demand maximum throughput, extended service life, and reliable cost performance, these cartridges provide a dependable and cost effective solution backed by factory direct quality and technical support.
