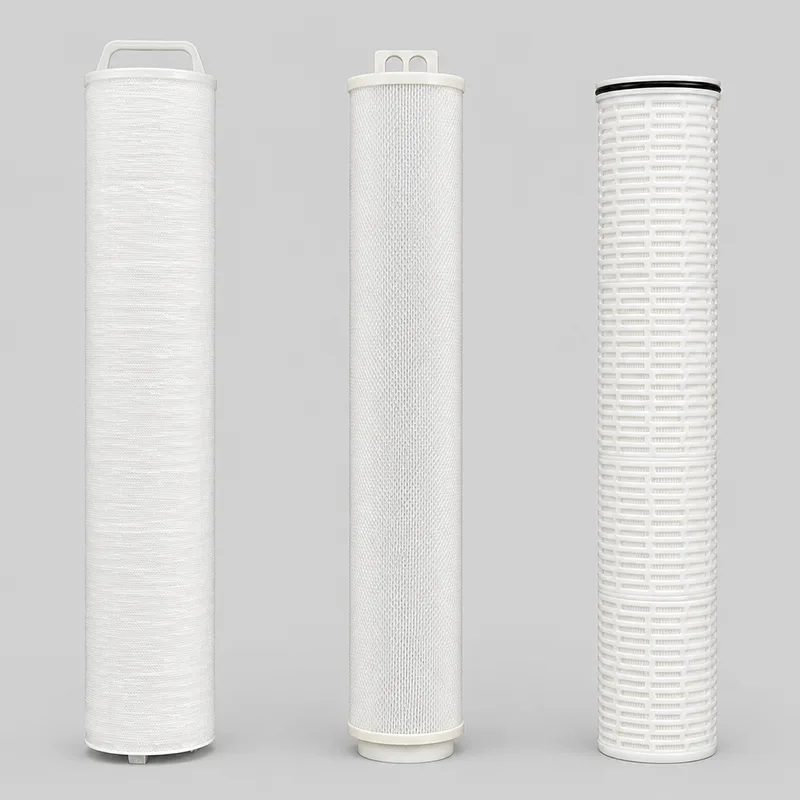

JFK High Flow Cartridge Filters

Request pricing for JFK High Flow Cartridge Filters from MS factory when your process requires a high flow cartridge with absolute removal rating and dependable particle retention for critical filtration steps. The JFK series uses pleated polypropylene and glass fiber blended media in an all polypropylene hardware design with thermal bonding sealing without adhesives, binders, or surfactants. This construction supports consistent retention performance and low extractables across a broad range of process chemicals and aqueous solutions.

The glass fiber enhanced media provides a graded pore structure that combines high dirt holding capacity with precise particle retention, making the JFK series suitable for applications where downstream equipment or product quality demands tighter particulate control than standard nominal rated cartridges can provide. The expanded diameter pleated design delivers up to 11 m² of effective filtration area in a 60 inch element, allowing a single JFK cartridge to replace multiple conventional cartridges while maintaining the high flow capacity needed for large scale pretreatment systems.

Technical Specifications

Construction Materials

• Media: Polypropylene, Glass fiber

• Support: Polypropylene

• Hardware: Polypropylene

• O ring: EPDM, Viton, Silicon, NBR, TEV

Performance Advantages

•  Absolute removal rating. Defined particle retention with consistently high removal efficiency at the rated pore size for critical process steps.

•  Glass fiber enhanced media. Blended polypropylene and glass fiber structure combines chemical compatibility with fine fiber filtration characteristics for precise retention with high dirt holding capacity.

•  Thermal bonding construction. Media pack sealed without adhesives, binders, or surfactants, minimizing extractables in demanding applications.

•  High flow capacity. Expanded diameter pleated design delivers up to 11 m² effective area, supporting high flow rates with low differential pressure, making JFK High Flow Cartridge Filters suitable for large scale pretreatment systems.

Where Absolute Filtration Matters

•  Reverse osmosis prefiltration. Dependable protection for RO membrane elements, consistently removing particles that could cause membrane fouling and reducing chemical cleaning frequency.

•  Seawater desalination pretreatment. Handles high flow volumes while maintaining consistent particle removal across variable feed water conditions.

•  Food and beverage water filtration. Consistent particulate control for ingredient water, process water, and final polishing steps supporting product quality and regulatory compliance.

•  Oilfield produced water treatment. Reliable filtration for produced water and injection water with robust construction and broad chemical compatibility.

•  Power generation water treatment. Dependable high volume filtration for makeup water, condensate polishing prefiltration, and cooling water applications, making JFK High Flow Cartridge Filters suitable for critical power plant filtration.

Food Safety Compliance

Constructed with food contact compliant polypropylene and glass fiber media, the JFK series satisfies FDA 21 CFR and EU 10/2011 regulations for use in food and beverage processing water applications where absolute filtration precision is required.

Quality Assurance and Factory Capabilities

Every JFK cartridge passes through a multi stage quality gate at MS factory: incoming raw material inspection, in process dimensional checks, and final integrity verification before release. Each production batch carries a unique traceability identifier linking raw material lots, production parameters, and inspection records. Material compliance documentation and inspection reports are available to support customer qualification files. As a factory direct supplier, we offer stable batch supply, O ring material options, OEM private label programs, and technical support for cartridge selection and system sizing. For applications where absolute retention and consistent performance are non negotiable requirements, these cartridges provide a dependable and cost effective filtration solution backed by factory direct quality and technical support.

Ordering Information
