KleanAssure Sterilizing Grade Capsule Filter PVDF Membrane

1)KleanAssure Sterilizing grade capsule filter PVDF Membrane

Summary

Source KleanAssure Sterilizing grade capsule filter PVDF membrane from MS for double layer hydrophilic PVDF filtration with multiple capsule size options and on line integrity test support. The staged membrane structure helps improve loading tolerance, while the clean manufacturing approach avoids adhesives, binders, and surfactants and includes high purity water rinsing to support low extractables intent.

Introduction

Buy KleanAssure Sterilizing grade capsule filter PVDF membrane from MS when you need a double layer PVDF capsule that can be scaled across departments and skids. The staged membrane structure is intended to intercept contaminants progressively, helping reduce premature blockage and stabilize pressure rise. For verification oriented operation, the capsule supports on line integrity testing through the vent port, supporting documented workflows.

Application Insights: When Double Layer PVDF Helps

Beverages: if turbidity varies batch to batch, staged capture can reduce early blinding.

Fine Chemicals: helps keep flux steadier when particles fluctuate during transfer.

Pharmaceuticals: supports higher control filtration points where predictable changeouts are preferred.

Biologics / Serums: selected when stable wetting and low adsorption behavior are valued.

Quick Troubleshooting Tips

Fast pressure rise: consider larger capsule area or upstream prefiltration.

Low flow: confirm wetting, venting, and connection restrictions.

Integrity failures: verify test fluid, temperature, and sealing before concluding damage.

Area Options

1.5": 500 cm²

2.5": 1000 cm²

4": 1500 cm²

5": 2000 cm²

Materials of Construction

Filter Media: Double layer hydrophilic PVDF

Media Support: Polypropylene

End Caps: Polypropylene

Inner Core: Polypropylene

Outer Cage: Polypropylene

Integrity

Minimum burst pressure: 123.5 psi (8.5 barg)

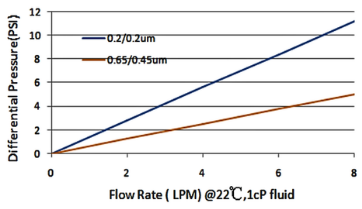

Typical Flow Rate

Typical Flow Rate in water, 2.5" (place curve here)

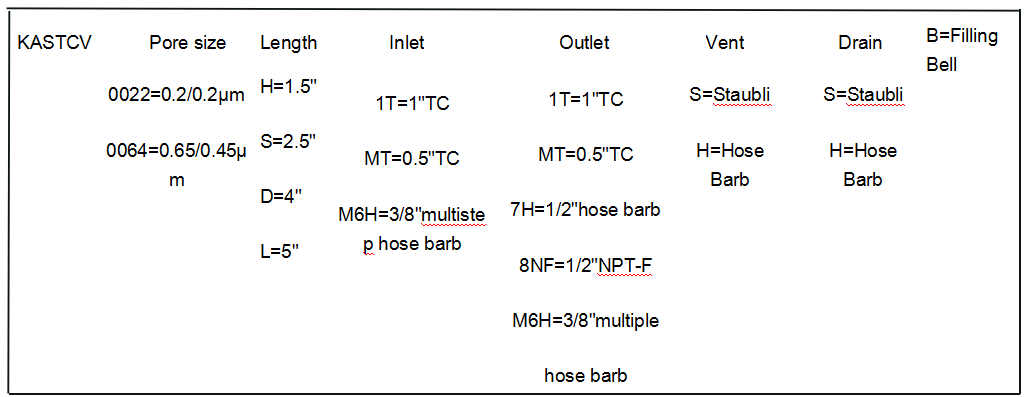

Ordering Information

Before purchasing KleanAssure Sterilizing grade capsule filter PVDF membrane, confirm the pore rating pair, capsule size, and connection style, and share any process notes (fluid type, temperature). MS will review compatibility and issue the final ordering confirmation.
