7)Kleanpro Mini PVDF Capsule Filter

7)Kleanpro Mini PVDF Capsule Filter

Summary

Buy Kleanpro Mini PVDF Capsule Filter from MS for low flow terminal filtration where compact size, low protein adsorption, and stable flux are required. Hydrophilic PVDF membranes help retain bacteria and colloidal impurities with anti fouling performance and resistance to clogging. This mini capsule supports convenient installation and removal and includes 100% integrity testing as a program benefit.

Introduction

Order Kleanpro Mini PVDF Capsule Filter from MS when you need a compact terminal filter for laboratory or small systems handling aqueous solutions and compatible organic solvents. Hydrophilic PVDF offers low protein adsorption, supporting solution purity and stability in complex fluids. The mini capsule format makes replacement fast and reduces downtime. In controlled routines, this product supports 100% integrity testing, helping deliver consistent out of box performance.

Application Notes: Lab and Point-of-Use Filtration

Laboratory analysis: helps protect instruments by reducing bacteria and colloidal particles.

Pure water purification: used as a terminal polishing filter to reduce particulate burden.

Small batch formulation trials: compact capsule helps standardize quick setup and teardown.

Sampling and Testing Support from MS

For evaluation projects, MS can support:

Sample selection guidance by pore size and media compatibility

Setup suggestions for flushing and integrity checks

Documentation support for SOP filing based on stated construction and compliance basis

Operating Limits

Max working pressure: 5 bar at 20°C

Max operating temperature: 80°C

Filter area: 300 cm²

Construction Materials

Filter Media: PVDF Media

Support: Polypropylene

Hardwares: Polypropylene

Filling Bell: Polycarbonate (PC)

Sanitization and Sterilization

Hot water 90°C, 30 min, multiple cycles, max 3 psid forward flow

Autoclave 121°C, 30 min, multiple cycles

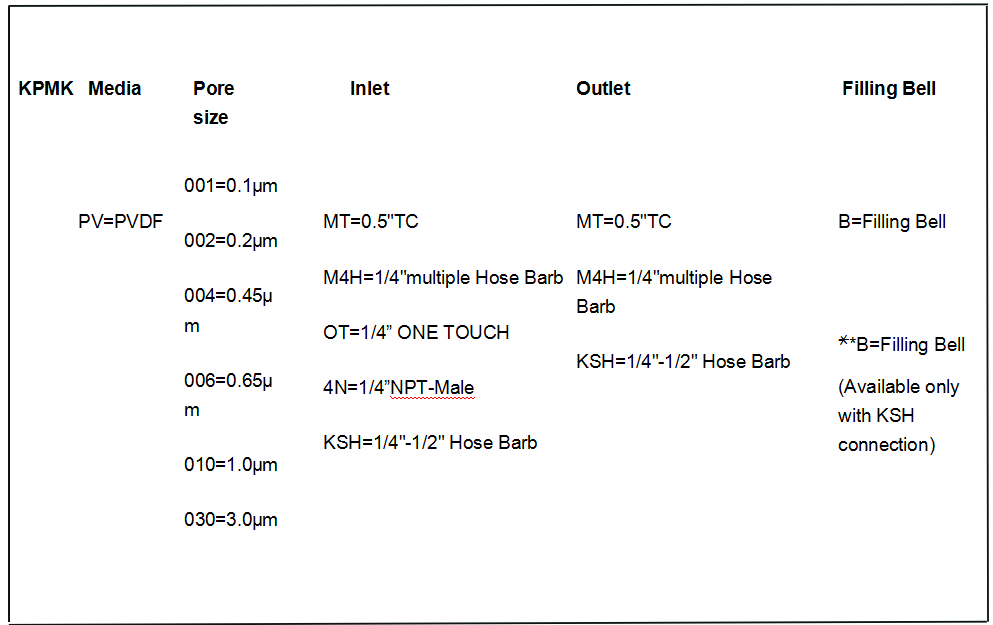

Ordering Information

For ordering Kleanpro Mini PVDF Capsule Filter, send your preferred connection type and quantity to MS, and indicate whether the use is laboratory analysis or pure water filtration. We will confirm the suitable configuration and quotation.
