Kleanpro Mini Double layer PVDF Membrane Capsule Filter

8) Kleanpro Mini Double layer PVDF Membrane Capsule Filter

Summary

Source Kleanpro Mini Double layer PVDF Membrane Capsule Filter from MS for compact terminal filtration where higher dirt holding capacity and steadier flux are desired. The dual layer PVDF design supports staged interception to reduce clogging tendency in complex solutions. This mini capsule fits confined spaces, supports easy handling, and includes 100% integrity testing as a program benefit.

Introduction

Get a quote for Kleanpro Mini Double layer PVDF Membrane Capsule Filter from MS when a single layer mini capsule clogs too quickly or shows unstable flux during longer runs. The double layer PVDF membrane structure is intended to capture contaminants progressively, improving contaminant holding capacity and helping maintain more stable throughput. With low protein adsorption characteristics and a compact footprint, it fits laboratory and small skid terminal filtration tasks.

Application Notes: Why Double Layer Performs Better

Lab samples with intermittent particles: staged interception reduces sudden blockage events.

Pure water polishing with unknown particulate spikes: double layer helps stabilize runtime.

Complex aqueous plus solvent blends: PVDF can be considered when compatibility and low adsorption are needed.

Selection Guide: Double Layer vs Single Layer

Pick Kleanpro Mini Double layer PVDF Membrane Capsule Filter if you want longer runtime per capsule and more stable flux behavior. Pick the single layer mini PVDF if the fluid is already clean and you prioritize minimum initial pressure drop.

Operating Limits

Max working pressure: 5 bar at 20°C

Max operating temperature: 80°C

Filter area: 300 cm²

Construction Materials

Filter Media: Double layer PVDF Media

Support: Polypropylene

Hardwares: Polypropylene

Filling Bell: Polycarbonate (PC)

Sanitization and Sterilization

Hot water 90°C, 30 min, multiple cycles, max 3 psid forward flow

Autoclave 121°C, 30 min, multiple cycles

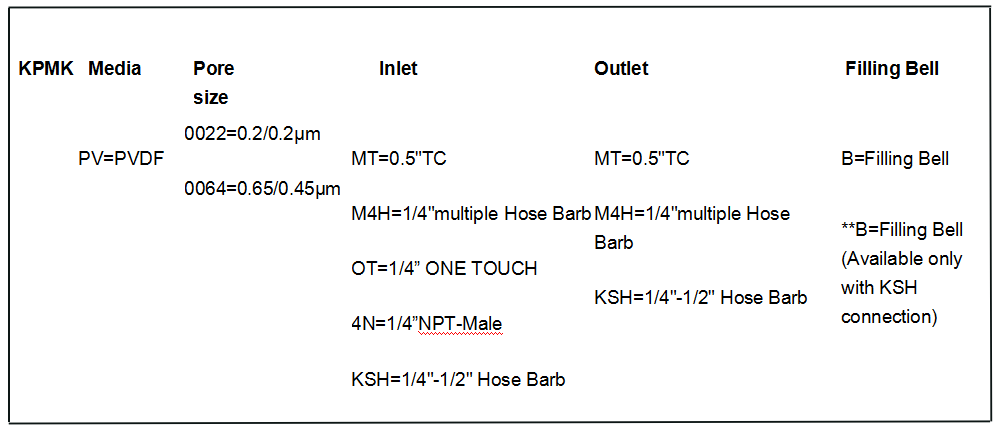

Ordering Information

To order Kleanpro Mini Double layer PVDF Membrane Capsule Filter, please confirm connection type, quantity, and your runtime target (flow and expected particulate load). MS can suggest the best fit versus single layer mini options before you finalize the order.
