KleanCap Gamma Irradiation Sterilizable PVDF Capsule Filters

Request pricing for KleanCap Gamma Irradiation Sterilizable PVDF Capsule Filters from MS factory when your process needs a gamma-sterilized capsule with on-line integrity test capability. The Staubli connection at the vent allows integrity verification without capsule removal, supporting validation-oriented workflows. The single-layer hydrophilic PVDF membrane offers broad chemical compatibility and high flow, and each capsule is rinsed with high-purity water.

Buyer Comparison: PVDF vs PES vs Nylon in Gamma Capsules

If you need low protein binding for cell culture or parenterals, PES is typically evaluated first.

If you need naturally hydrophilic start-up with high flow, Nylon is often considered.

If you want low protein adsorption plus on-line integrity testing via Staubli vent, PVDF in this capsule is a common choice.

Application intent

Beverages: hydrophilic PVDF supports stable wetting in aqueous streams.

Fine Chemicals: broad compatibility handles diverse process fluids.

Pharmaceuticals: on-line integrity test supports documented workflows.

Biologics: low extractables intent protects sensitive products.

Filtration Area and Strength

Filter Area: 6000 cm² / 10"

Minimum burst pressure: 123.5 psi (8.5 barg)

Materials of Construction

Filter Media: Hydrophilic PVDF

End Caps: Polypropylene

Inner Core: Polypropylene

Outer Cage: Polypropylene

Compliance

USP Class VI 121°C plastics

FDA 21 CFR and EU 10/2011 basis

Integrity (wetted membrane)

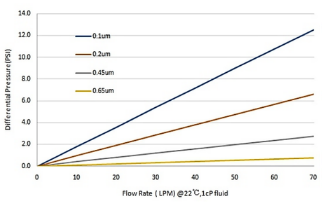

Typical Flow Rate in water, 10"

Ordering Information

Request pricing for KleanCap Gamma Irradiation Sterilizable PVDF Capsule Filters by sending pore size, connection type, and capsule length to MS. We will confirm and reply with lead time and order details.
