KleanAssure Capsule Filters Bio Reduction PVDF membrane

1)KleanAssure Capsule Filters Bio Reduction PVDF membrane

Summary

Get a quote for KleanAssure Capsule Filters Bio Reduction PVDF membrane from MS when you need flexible capsule sizes with a single layer hydrophilic PVDF membrane and on line integrity test support via a Staubli vent. The design targets high flow and low extractables intent, and the manufacturing process avoids adhesives, binders, and surfactants with high purity water rinsing.

Introduction

Order KleanAssure Capsule Filters Bio Reduction PVDF membrane from MS if your plant runs multiple scales and you want one PVDF capsule family that can be sized appropriately for each skid. Instead of oversizing every line, the area options allow you to match throughput and footprint. Our product is also configured for on line integrity testing, supporting routine verification without removing the capsule.

Application Guidance: How to Size for Your Line

Beverages: select area to keep pressure rise slow during long batches.

Fine Chemicals: choose pore size based on clarity target and upstream solids variability.

Pharmaceuticals: common for process protection where documentation and repeatability are needed.

Biologics: capsule sizing helps avoid shear and flow instability in sensitive handling steps.

Serums: hydrophilic PVDF supports stable wetting for repeatable start up.

Choose your filter area (scale matching)

1.5": 500 cm²

2.5": 1000 cm²

4": 1500 cm²

5": 2000 cm²

Materials of Construction

Filter Media: Hydrophilic PVDF

Media Support: Polypropylene

End Caps: Polypropylene

Inner Core: Polypropylene

Outer Cage: Polypropylene

Integrity and Strength

Minimum burst pressure: 123.5 psi (8.5 barg)

Integrity (wetted membrane)

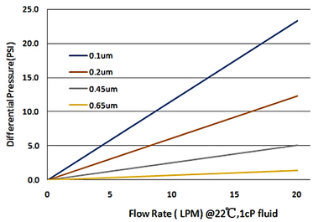

Typical Flow Rate

Typical Flow Rate in water, 2.5"

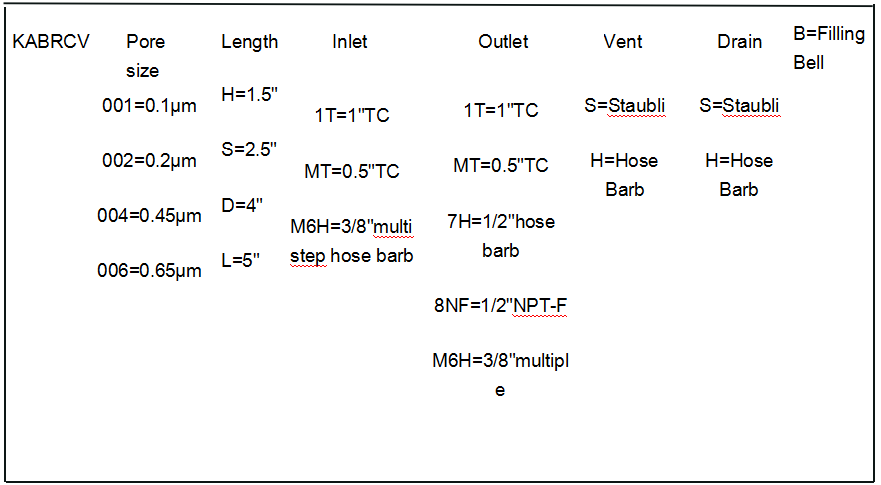

Ordering Information

For KleanAssure Capsule Filters Bio Reduction PVDF membrane, please specify pore size, capsule size (1.5"/2.5"/4"/5"), and vent/connection requirements. MS can help match filtration area to your target flow before order release.
