Bioburden Reduction Capsule Filter Double Layer Nylon Membrane

2)Bioburden reduction capsule filter Double layer Nylon membrane

Summary

Order Bioburden reduction capsule filter Double layer Nylon membrane from MS in the double layer configuration. The dual layer nylon media provides staged retention behavior that helps improve dirt holding capacity compared with single layer designs, while the full size capsule format keeps installation and changeout straightforward for production use.

Introduction

Instead of relying on a single membrane layer at high solids points, order Bioburden reduction capsule filter Double layer Nylon membrane from MS with a double layer nylon media structure to support better loading behavior. This KleanCap family capsule uses an all polypropylene construction with a naturally hydrophilic nylon membrane design, helping avoid IPA prewetting steps in many aqueous applications. The double layer arrangement is intended to capture larger contaminants first and protect the finer retention layer, helping reduce premature surface blockage and extend service life.

In many plants, Bioburden reduction capsule filter Double layer Nylon membrane in double layer format is selected when operators want to reduce changeout frequency while keeping stable throughput.

Key Features and Functional Advantages

Dual layer nylon media for improved dirt holding

The outer layer can intercept larger particulate contamination, while the inner layer performs finer filtration. This staged approach often increases usable life in variable turbidity liquids.

Naturally hydrophilic behavior for efficient start up

Nylon’s wetting characteristics support direct use in water based liquids without alcohol prewetting, reducing preparation steps before production.

Full size capsule convenience

A self contained capsule structure simplifies installation and supports repeatable replacement procedures across skids and lines.

All polypropylene support structure

Polypropylene hardware components provide mechanical strength and consistent wetted material composition, supporting common process compatibility review.

Typical Application

Solvents

Parts Cleaning

Fine Chemicals

Cosmetics

Ink Jets

Pharmaceuticals

Process Water

Biologics

Filtration Area

6000 cm² / 10"

Capsule Integrity

Minimum burst pressure: 123.5 psi (8.5 barg)

Materials of Construction

Filter Media: Double layer Nylon

Media Support: Polypropylene

End Caps: Polypropylene

Inner Core: Polypropylene

Outer Cage: Polypropylene

Toxity

All materials comply with USP Class VI (121°C plastic) biosafety specifications.

Integrity (Wetted membrane)

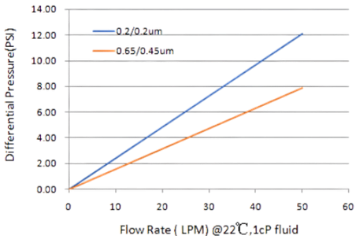

Typical Flow Rate

Typical Flow Rate in gas/air, 10"

Buyer Notes

If you are comparing single layer and double layer options, share your upstream solids load and target service time. MS can help confirm the most economical configuration based on expected differential pressure rise and changeout intervals.

Quality and Compliance

Based on stated materials, compliance statements related to USP Class VI (121°C) plastics and food contact expectations under FDA 21 CFR and EU 10/2011 can be provided upon request for audits.

Factory Support

MS supports connection options, OEM private label supply, and configuration confirmation for pore rating and capsule length for this double layer nylon capsule.

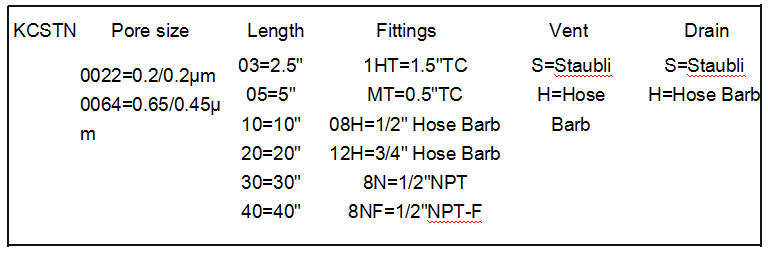

Ordering Information

To order Bioburden reduction capsule filter Double layer Nylon membrane in double layer format, specify pore rating pair, connection type, and capsule length.
