Kleanpro Mini Double layer NYLON Membrane Capsule Filter

7) Kleanpro Mini Double layer NYLON Membrane Capsule Filter

Summary

When you need longer service life and steadier throughput in a compact terminal filter, order Kleanpro Mini Double layer NYLON Membrane Capsule Filter from MS. This mini capsule combines nylon’s hydrophilicity and alcohol resistance with a dual layer nylon 66 structure designed for staged capture. It helps retain larger particulates in the outer layer and filter finer particles in the inner layer, improving dirt holding, reducing clogging, and supporting 100% integrity testing for consistent filtration performance.

Introduction

To reduce premature blockage in small footprint filtration points, order Kleanpro Mini Double layer NYLON Membrane Capsule Filter from MS with a coarse to fine dual layer nylon 66 membrane design. The first layer acts as a protective stage for larger contaminants, while the second layer provides finer filtration, helping maintain stable throughput over time. This structure is particularly useful when a single layer mini filter would reach terminal pressure too quickly in real world use.

In practice, Kleanpro Mini Double layer NYLON Membrane Capsule Filter is selected when operators want to extend changeout intervals without expanding installation space.

Features and Functional Advantages

Dual layer nylon 66 for staged interception

The outer membrane layer retains larger particulate impurities, reducing the immediate burden on the finer inner layer and improving overall dirt holding capacity.

Improved resistance to clogging for stable filtration

By distributing contaminants across two layers, the capsule can reduce rapid surface blinding and help maintain steadier filtration throughput.

Hydrophilicity and alcohol resistance for broader use

Nylon supports filtration of aqueous solutions as well as alcohol based solvents, providing flexible use in lab and small scale processes.

Low protein adsorption with terminal filtration intent

The membrane characteristics are suitable for sensitive solutions where adsorption should be minimized, supporting product stability.

100% integrity testing

Each mini capsule is 100% integrity tested, supporting reliable out of box results for controlled workflows.

Typical Application

Laboratory Analysis

Pure Water Purification

Maximum working pressure

5 bar at 20°C

Maximum operating temperature

80°C

Filter area

300 cm²

Benefits

Extensive chemical compatibility

Convenient installation and removal

100% integrity testing

Toxity

Every structural component of the filters meets the USP Class VI biological safety criteria for plastics, validated under the standard 121°C high-temperature test protocol.

Construction Materials

Filter Media: Nylon Media

Support: Polypropylene

Hardwares: Polypropylene

Filling Bell: Polycarbonate (PC)

Sanitization and Sterilization

Filtered Hot Water 90°C (194°F), 30 minutes, multiple cycles, max 3 psid forward flow.

Autoclave 121°C (250°F), 30 min, multiple cycles.

Food Safety Compliance

The complete set of filter construction materials, including filter media and assembly hardware, is manufactured in full accordance with global food contact safety regulations. Compliance with FDA 21 CFR and EU 10/2011 ensures reliable biosafety and non-toxicity for all food and beverage contact applications.

Buyer Notes

If your application shows fast pressure rise with a single layer mini capsule, the double layer option can be evaluated to extend runtime. Provide your fluid type, temperature, and expected particulate load so MS can support selection.

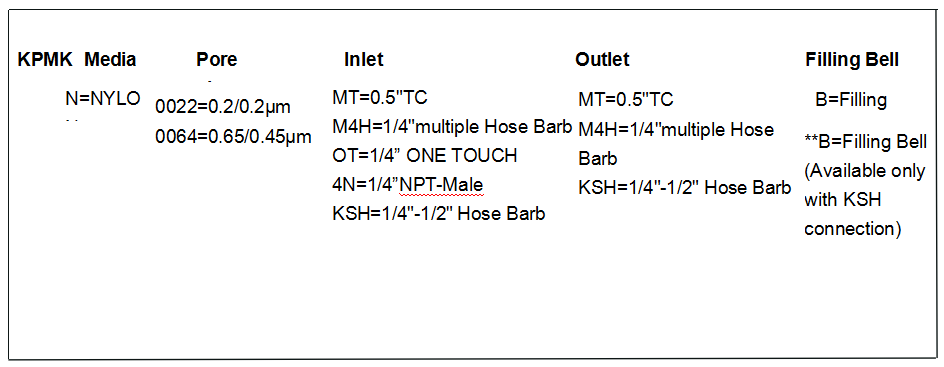

Ordering Information

To order Kleanpro Mini Double layer NYLON Membrane Capsule Filter, specify connection type, quantity, and intended application.
