Bioburden Reduction Capsule Filter Nylon Membrane

1) Bioburden reduction capsule filter Nylon membrane

Summary

For critical liquid filtration points that need superior flow without alcohol prewetting, buy Bioburden reduction capsule filter Nylon membrane from MS. This full size KleanCap capsule combines a naturally hydrophilic nylon membrane with an all polypropylene construction to deliver excellent chemical compatibility, high flow per unit area, and a clean start up process that avoids IPA prewetting and DI flushing as potential contamination sources.

Introduction

Built around a naturally wetting nylon membrane, buy Bioburden reduction capsule filter Nylon membrane from MS when you want high throughput and straightforward start up in aqueous service. The KleanCap full size capsule format is intended for applications where flow performance is a primary selection factor and where operators prefer to eliminate alcohol prewetting steps. With nylon media supported in an all polypropylene hardware set, the design supports broad compatibility in many process liquids while maintaining a practical capsule changeout format.

In routine production, the product is often positioned as a high performance membrane capsule for particle reduction and bioburden reduction goals, especially when stable flow helps protect downstream process stability.

Core Features and Functional Advantages

Naturally hydrophilic nylon membrane for direct wetting

Nylon’s inherent hydrophilicity supports rapid wetting in water based solutions. This can reduce start up time and avoid the operational burden of IPA prewetting and subsequent DI water flushing.

High flow per unit area for demanding filtration points

The membrane and pleat design are selected to provide strong throughput, making the capsule suitable for critical steps where superior flow is required.

All polypropylene hardware for consistent wetted materials

Filter media is nylon, while the structural components are polypropylene. This simplifies wetted material review and supports common process compatibility expectations.

Reduced contamination risk from simplified pre use handling

Removing the IPA prewetting and flushing step can reduce a potential contamination pathway introduced by handling, solvent quality, or incomplete flushing.

Typical Application

Our Bioburden reduction capsule filter Nylon membrane is applied as follows:

Solvents

Parts Cleaning

Fine Chemicals

Cosmetics

Ink Jets

Pharmaceuticals

Process Water

Biologics

Filtration Area

7000 cm² / 10"

Toxity

All materials meet the specifications for biological safety per USP Class VI 121°C for plastics.

Capsule Integrity

Minimum burst pressure: 123.5 psi (8.5 barg)

Materials of Construction

Filter Media: Nylon

Media Support: Polypropylene

End Caps: Polypropylene

Inner Core: Polypropylene

Outer Cage: Polypropylene

Food Safety Compliance

All filter materials are food-safety certified. Filter media and hardware comply with FDA 21 CFR and EU 10/2011 food contact regulations, enabling safe and reliable use in food and beverage processing environments.

Integrity (Wetted membrane)

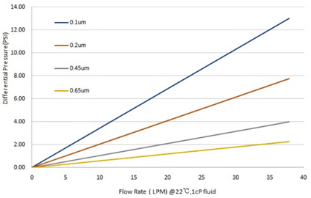

Typical Flow Rate

Typical Flow Rate in gas/air, 10"

Product Selection Guidance

Choose Bioburden reduction capsule filter Nylon membrane when you need a naturally hydrophilic membrane capsule that starts easily in aqueous service and prioritizes high flow. If your process requires extended service life under higher particulate load, consider a double layer nylon capsule option to improve dirt holding and reduce clogging tendency.

Quality and Documentation

For customer qualification files, MS can provide material summaries and compliance statements aligned with USP Class VI (121°C), FDA 21 CFR, and EU 10/2011 based on stated construction materials.

Factory Service Highlights

As a capsule filter manufacturer, MS supports this nylon capsule program with connection customization, stable batch supply, OEM private label options, and configuration review for pore size and capsule length.

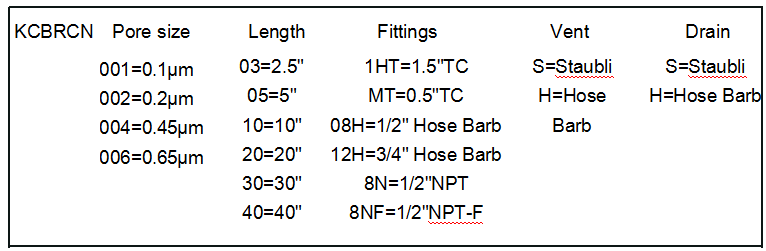

Ordering Information

For ordering Bioburden reduction capsule filter Nylon membrane, please confirm pore size, connection type, and length specification.
