KleanCap Polypro Capsule Filters Polypropylene Media Absolute Rated

1) KleanCap Polypro Capsule Filters Polypropylene Media Absolute Rated

Summary

Buy KleanCap Polypro Capsule filters Polypropylene media Absolute Rated from MS to tighten particle control in specification driven clarification and prefiltration steps while keeping the convenience of a full size capsule. The pleated PP media with graded porosity supports defined retention expectations, practical dirt capacity, and stable operation in compatible liquid streams where downstream equipment or product requirements demand more controlled particulate carryover.

Introduction

Instead of relying on simple surface loading prefilters, buy KleanCap Polypro Capsule filters Polypropylene media Absolute Rated from MS for a capsule built around graded porosity polypropylene media that loads contaminants through the matrix. Open upstream layers manage larger solids, while tighter inner layers address finer particles, which can help delay premature blockage and support more predictable pressure development. In many plants, an absolute rated PP capsule is selected to reduce particle related variability and to protect downstream fine filters, pumps, valves, or critical process hardware.

Product Features

Absolute rated retention for higher control points

This version is intended for applications where a defined retention target is important for internal specifications and process consistency.

Depth loading behavior supported by graded porosity

Progressive capture encourages the media to store contaminants throughout the structure rather than concentrating all solids at the face.

Pleated media pack for throughput in a compact footprint

The pleated configuration increases effective area, supporting practical flow and service life.

Full size capsule format for quick installation

The capsule integrates media and housing, supporting fast changeouts and reduced handling steps.

Typical Application：

Solvents

Parts Cleaning

Bulk Chemicals

Cosmetics

Ink Jets

Pharmaceuticals

Process Water

Biologics

Toxity：

All materials meet the specifications for biological safety per USP Class VI 121°C for plastics.

Capsule Integrity：

Minimum burst pressure: 123.5 psi (8.5 barg)

Materials of Construction：

Filter Media: Polypropylene (PP)

Media Support: Polypropylene

End Caps: Polypropylene

Inner Core: Polypropylene

Outer Cage: Polypropylene

Filtration Area：

5000 cm² / 10"

Food Safety Compliance：

Tailored for food and beverage manufacturing scenarios, our filter build materials adhere to strict international safety norms. Filter media and supporting hardware materials are fully compliant with FDA 21 CFR rules and EU 10/2011 directives, ensuring hygienic and safe food medium contact.

Autoclavable & Sanitizable

Capsules can be autoclaved 25 times at 125°C for 30 minutes or chemically sanitized in situ using common sanitizing agents or hot water at 90°C for a limited time (dependent on time and temperature). Capsules must not be in situ steam sterilized.

Typical Flow Rate

Typical Flow Rate per 10", 1.5" TC

Product Selection Guidance

Select KleanCap Polypro Capsule filters Polypropylene media Absolute Rated when your filtration point requires tighter particulate management than nominal prefiltration. If your main goal is economical clarification with maximum cost efficiency, the nominal rated KleanCap PP capsule is often a better fit.

Factory Service Highlights

MS offers direct factory supply, interface configuration options, OEM private label services, and ordering support to confirm rating, pore size, and capsule length for this KleanCap Polypro Capsule filters Polypropylene media Absolute Rated .

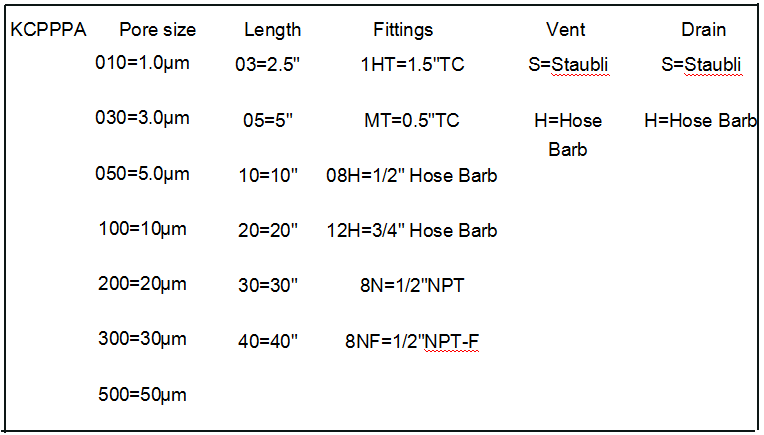

Ordering Information

Please confirm absolute rating, pore size, connection type, and length specification. Contact MS for quotation and configuration confirmation.
