KleanAssure Polypro Capsule filters Polypropylene media Absolute Rated

Buy KleanAssure Polypro Capsule filters Polypropylene media Absolute Rated from MS as a higher control alternative to nominal prefilters when downstream equipment or product criteria requires tighter particulate management. The design combines a pleated PP media pack with graded porosity so contaminants are captured progressively through the media body. This can help balance retention definition with usable service life, especially in applications that would otherwise require frequent changeouts.

Core Features & Functional Advantages

Defined retention intent for specification oriented steps

Absolute rated filtration is commonly selected where buyers need clearer retention expectations for internal specifications and process consistency.

Graded porosity to support loading behavior

Progressive capture helps the media store solids throughout the structure, supporting better utilization and reducing premature surface blockage.

Pleated design to provide practical throughput

The pleated media configuration provides a larger effective area within the capsule footprint, helping maintain throughput at acceptable pressure drop.

Capsule format that simplifies replacement

The integrated capsule reduces assembly steps on site and supports consistent installation practices.

Typical Application

Solvents

Parts Cleaning

Bulk Chemicals

Cosmetics

Ink Jets

Pharmaceuticals

Process Water

Biologics

Toxity

Each component of our filters has undergone rigorous testing and complies with USP Class VI biological safety specifications applicable to plastic materials at 121°C.

Capsule Integrity

Minimum burst pressure: 123.5 psi (8.5 barg)

Construction Materials

Filter Media: Polypropylene (PP)

Media Support: Polypropylene

End Caps: Polypropylene

Inner Core: Polypropylene

Outer Cage: Polypropylene

Filter Area

5000 cm² / 10"

Food Safety Compliance

All construction substrates for our capsule filters follow standardized global food safety protocols. The materials applied in filter media production and hardware assembly satisfy FDA 21 CFR compliance requirements and conform to EU 10/2011 guidelines for food contact usability.

Autoclavable & Sanitizable

Capsules can be autoclaved 25 times at 125°C for 30 minutes or sanitized in situ using common chemical agents or hot water at 90°C for limited exposure depending on time and temperature. Capsules must not be steam sterilized in situ.

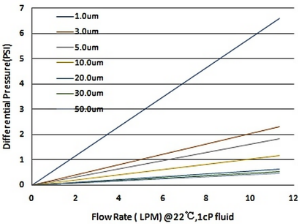

Typical Flow Rate

Typical Flow Rate in water, 2.5", 1" TC

Quality and Compliance

Based on stated construction materials, this product aligns with purchasing requirements that reference USP Class VI (121°C) plastics and food contact expectations under FDA 21 CFR and EU 10/2011. Compliance statements can be provided upon request for customer qualification files.

Factory Service Highlights

For KleanAssure Polypro Capsule filters Polypropylene media Absolute Rated, MS provides connection options, OEM private label support, and configuration review to help match rating, pore size, and capsule format to the actual process requirement.

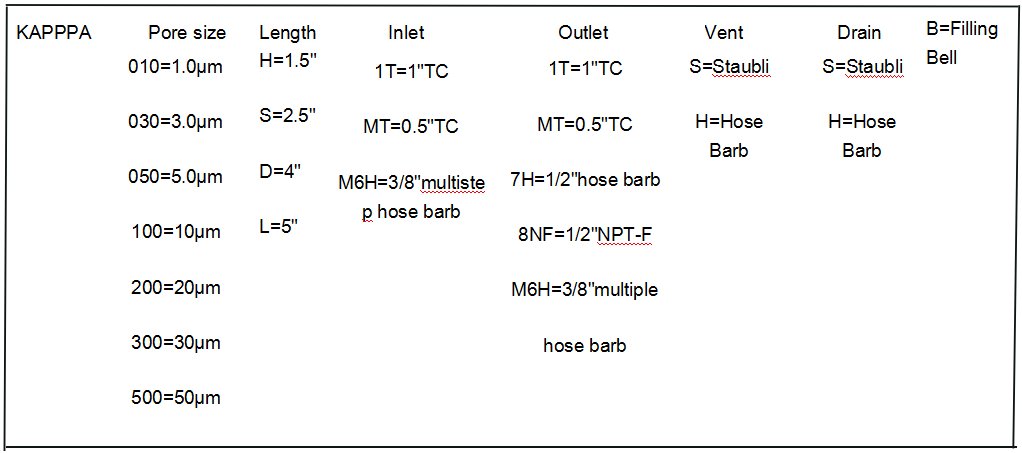

Ordering Information

Confirm absolute rating, pore size, connection, and capsule length before ordering.
