KleanCap Polypro Capsule filters Polypropylene media Nominal Rated

Built for staged particle capture rather than surface blinding, buy KleanCap Polypro Capsule filters Polypropylene media Nominal Rated from MS for clarification and prefiltration in compatible process liquids. This full size capsule uses graded porosity, pleated polypropylene media designed to remove particles in sequence by size. More open upstream layers retain larger particulates first, while tighter inner layers capture smaller contaminants. By spreading solids throughout the media matrix, the capsule is designed to deliver superior contaminant holding capacity, extended lifetime, and manageable differential pressure development in daily operation.

Nominal rated PP capsules are commonly selected when the process target is improved clarity, particle reduction, and downstream protection, especially when an absolute retention definition is not required.

Core Features & Functional Advantages

Sequential particle capture with graded porosity

The media is arranged to retain larger particles earlier and smaller particles later, which helps avoid rapid face loading and supports better use of the media depth.

Pleated construction for effective area in a compact capsule

Pleating increases the usable filtration area inside the capsule footprint, supporting practical throughput without requiring a large housing.

Contaminant distribution that supports longer service life

Because contaminants are stored through the media matrix rather than only on the first layer, the capsule can maintain operation longer under variable particulate loads.

Full size capsule convenience for routine changeout

The integrated capsule format simplifies installation and replacement and reduces handling steps during maintenance.

Typical Application

Solvents

Parts Cleaning

Bulk Chemicals

Cosmetics

Ink Jets

Pharmaceuticals

Process Water

Biologics

Toxity

All materials meet the specifications for biological safety per USP Class VI 121°C for plastics.

Capsule Integrity

Minimum burst pressure: 123.5 psi (8.5 barg)

Materials of Construction

Filter Media: Polypropylene (PP)

Media Support: Polypropylene

End Caps: Polypropylene

Inner Core: Polypropylene

Outer Cage: Polypropylene

Filtration Area

5000 cm² / 10"

Food Safety Compliance

The structural materials utilized in filter fabrication conform to the food contact criteria stipulated in FDA 21 CFR. Meanwhile, all raw materials for filter media and accessory hardware meet the safety specifications of EU 10/2011, qualifying for direct contact with food substances in production processes.

Autoclavable & Sanitizable

Capsules can be autoclaved 25 times at 125°C for 30 minutes or chemically sanitized in situ using common sanitizing agents or hot water at 90°C for a limited time (dependent on time and temperature). Capsules must not be in situ steam sterilized.

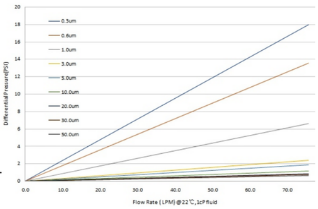

Typical Flow Rate

Typical Flow Rate per 10", 1.5" TC

Quality and Documentation Support

For qualification oriented purchasing, MS can provide supporting statements and documentation based on this product’s materials and specifications, including material summaries and compliance statements aligned with USP Class VI (121°C), FDA 21 CFR, and EU 10/2011 (materials basis).

Factory Service Highlights

As a factory supplier, MS supports sourcing programs for the product with stable batch supply, connection options, OEM private label support, and pre order selection guidance on rating, area, and capsule sizing.

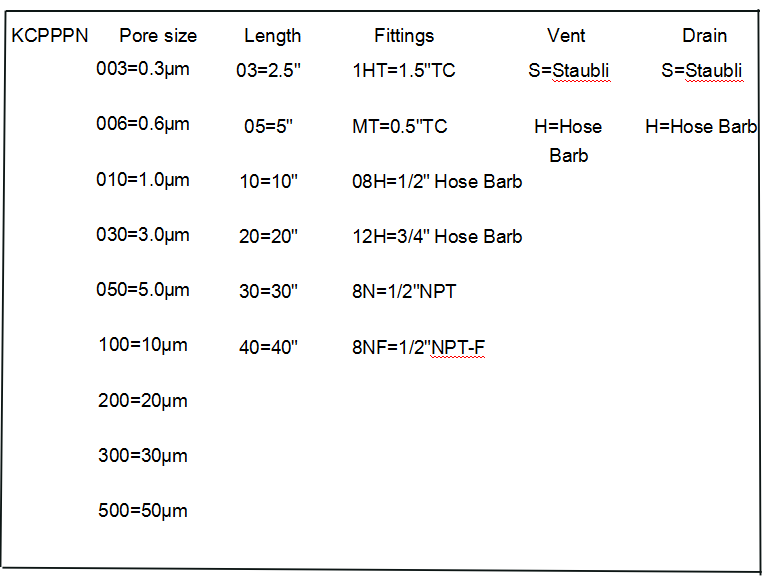

Ordering Information

To order KleanCap Polypro Capsule filters Polypropylene media Nominal Rated, please confirm rating type (nominal), pore size, connection type, and length specification.
