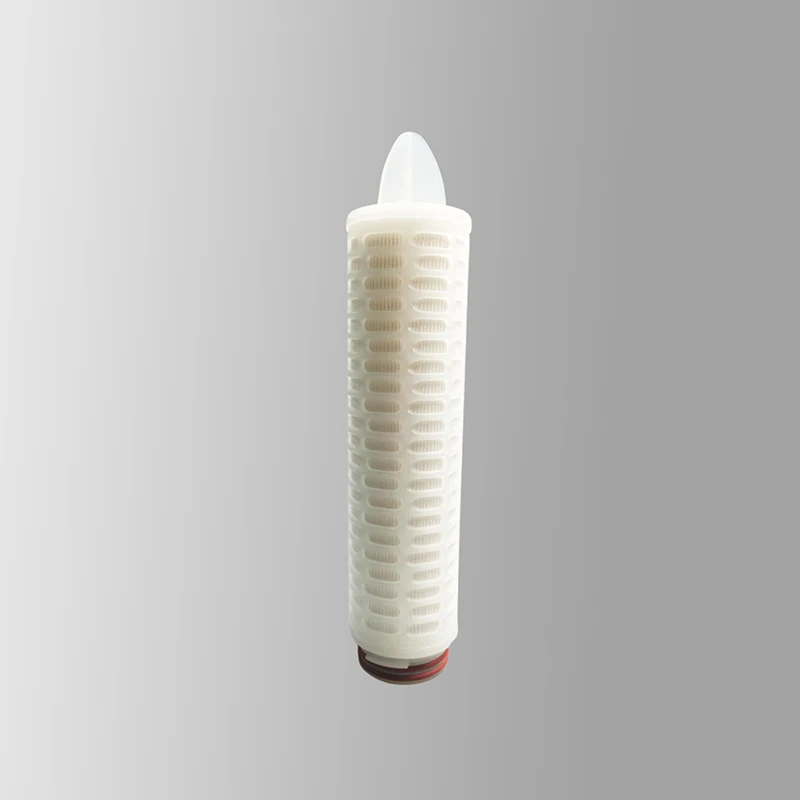

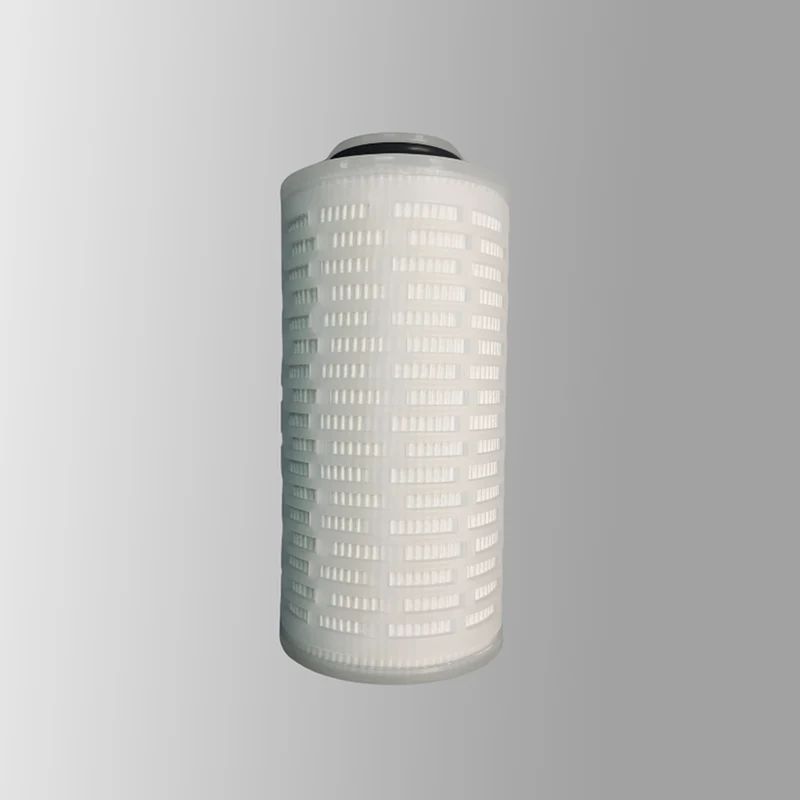

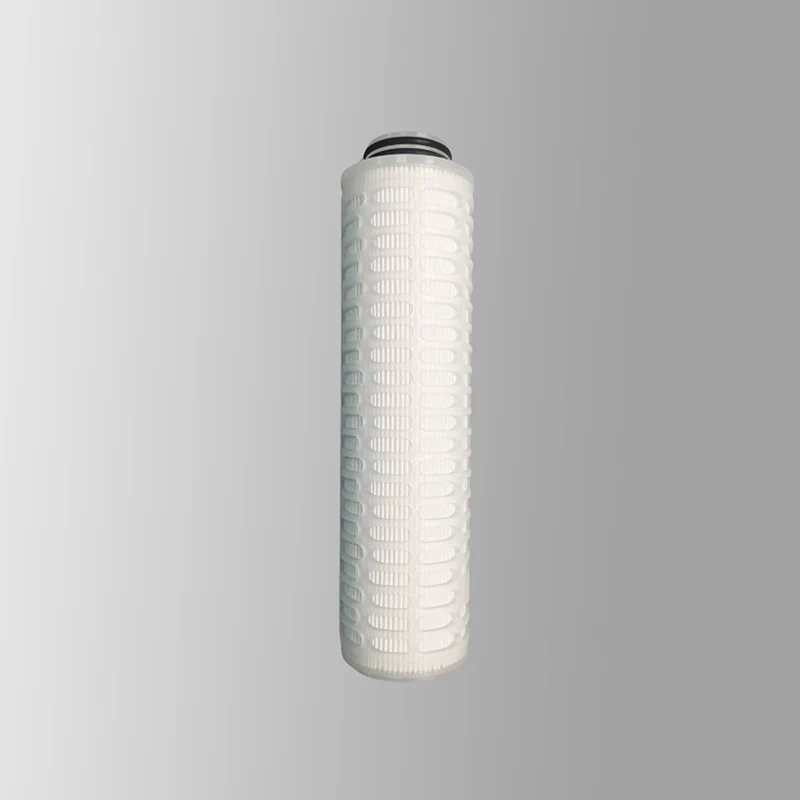

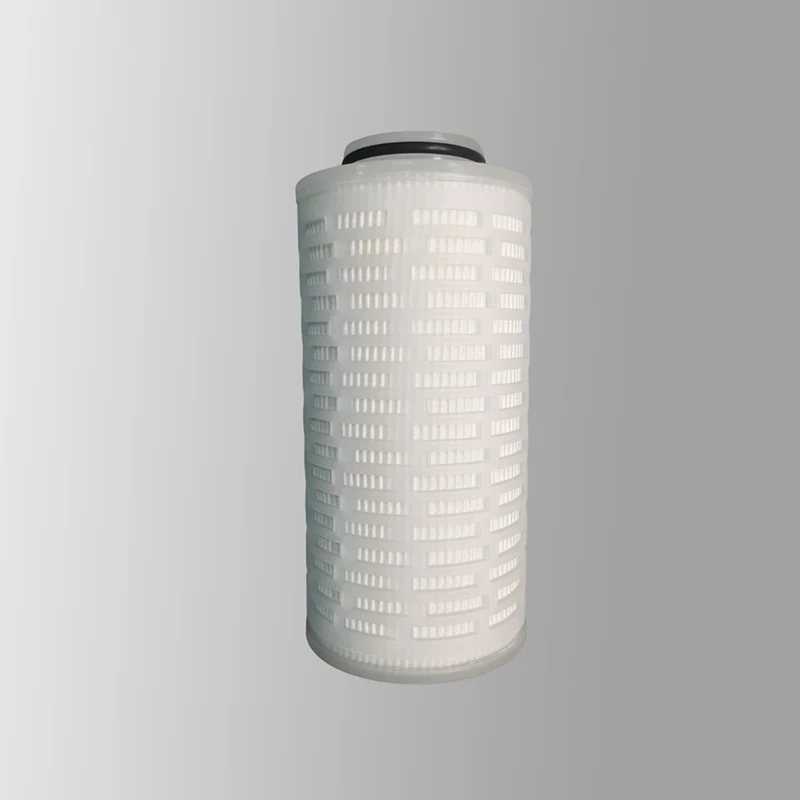

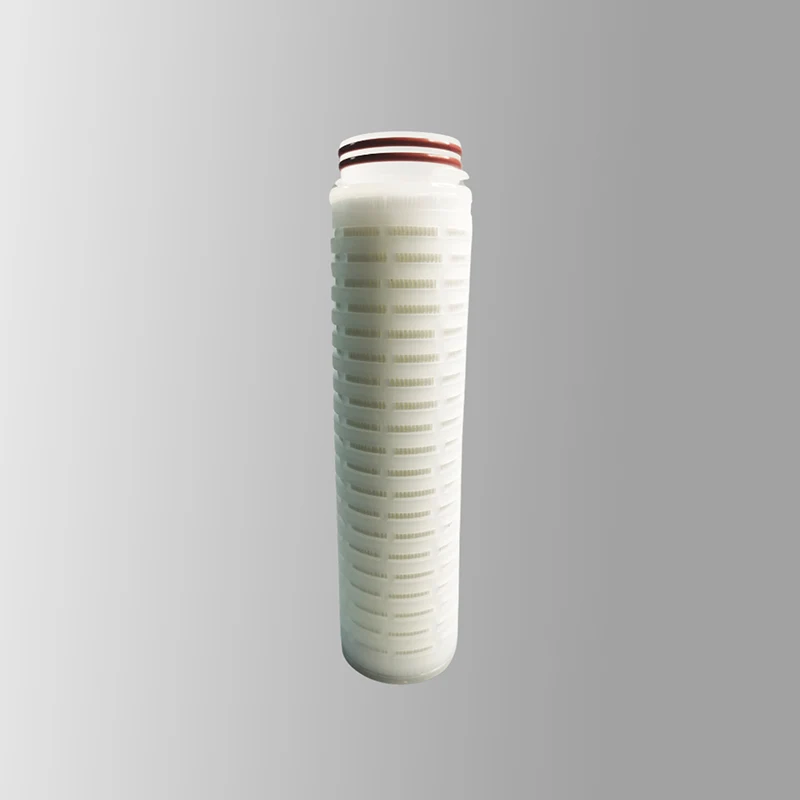

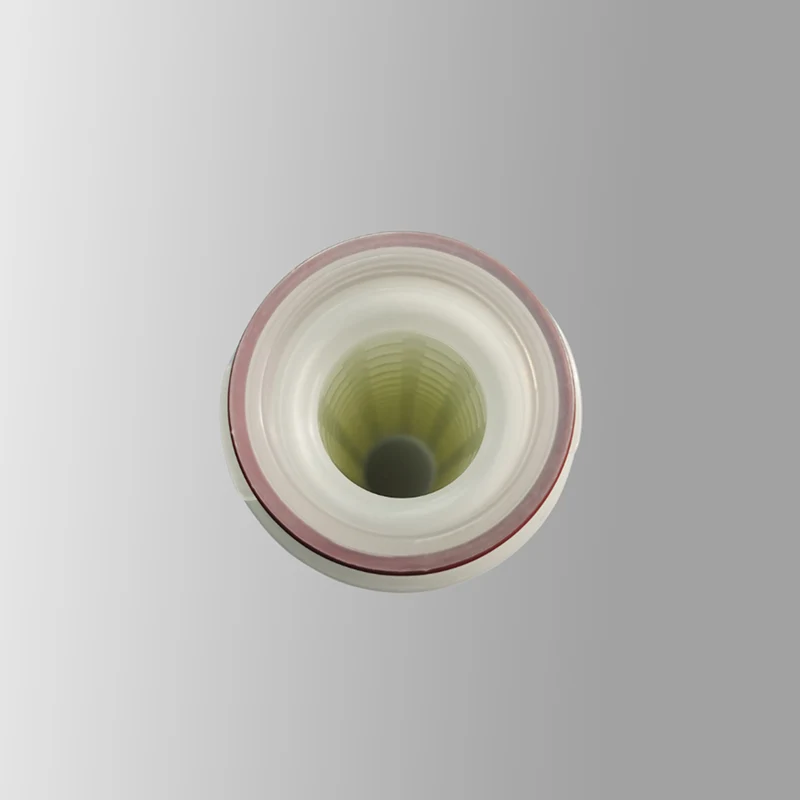

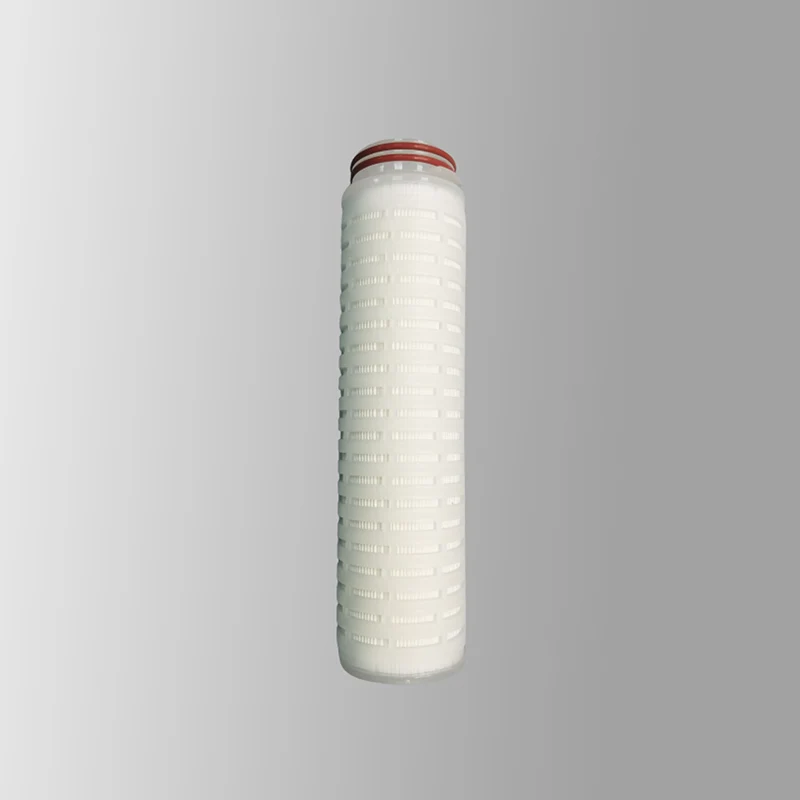

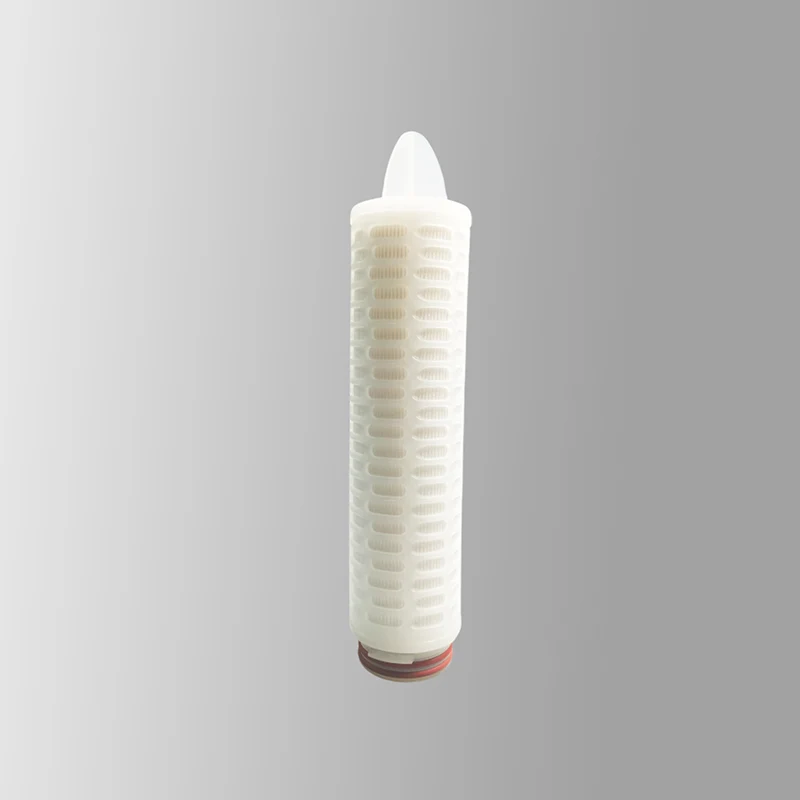

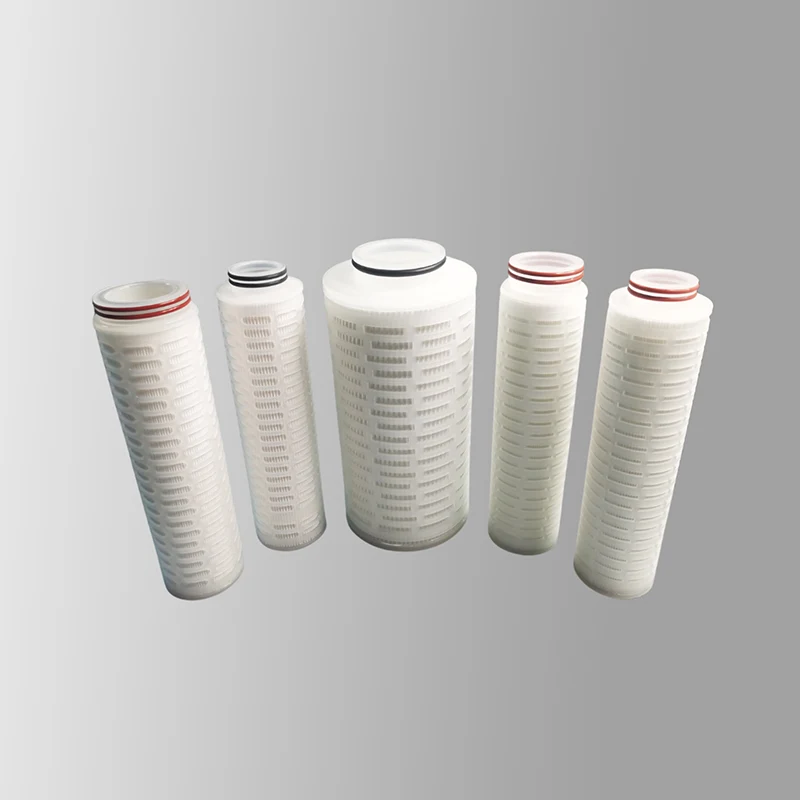

Bio-Burden Reduction Grade PES Filter Cartridge

We invite you to contact us for a quotation on a wide range of filter cartridges. Among the many types of media:PES cartridges,PES single layer cartridges,PES asymmetric cartridges,PES capsule filters, etc. All cartridges can  be tested for integrity and have an pore size of 0.04µm, 0.1 µm, 0.2µm, 0.45µm, 0.65µm.

The bio-burden reduction polyethersulfone membrane cartridges are designed to produce product sterility. The filters are constructed of single layer hydrophilic polyethersulfone membrane in all polypropylene construction. It offers broad chemical compatibility, high flow rate at low pressure drop, and low extractables .The polyethersulfone is particular suitable for the filtration of products that contains substances absorb to the membrane itself. The low protein binding characteristics of polyethersulfone makes it a good choice for the filtration of valuable  protein solutions such as vaccines and biologicals.  Our Bio-Burden Reduction Grade PES Filter Cartridge are durable and come with standardized dimensions.

Typical Application

·Cell Culture Media

·Large Volume Parenterals(LVP's)

·Pharmaceutical Bulk Chemical Solutions

·Diagnostics

·Blood and Serum Fractions

·Purified Water

·Beer, Wine and Spirits

·Juice & Soft Drinks

·Bottled Water

Integrity

Construction Materials

Filter Membrane:Polyethersulfone (PES) Membrane

Media Support: Polypropylene

End Caps: Polypropylene

Inner Core:Polypropylene

Outer Cage:Polypropylene

Sealing Method:Thermal Bonding

O-rings: Buna, Viton(or FKM), EP, Silicone,Encapsulated Silicone,Encapsulated Viton (or FKM)

Sanitization/Sterilization

Filtered Hot Water 90 ℃(194°F), 30 minutes,multiple cycles,max 3 psid forward flow

Autoclave 121℃(250"F),30 min,multiple cycles

In-line Steam 135℃(275°F),30 min,multiple cycles

Maximum Operating Parameters

Differential Pressure

·Forward 50 psid (3.4 bard)at 20℃(68°F)

·Reverse 40 psid (2.7 bard)at 20℃(68' F)

Operating Temperature 82 ℃(180'F) at 10

psid(0.69 barg) in water

Recommended Changeout Pressure:35psid(2.4barg)

Length:

5 to 40 inches (12 .7 to  101 .6 cm) nominal ，Outside Diameter:2 .70 inches (7 .0 cm)  nominal
