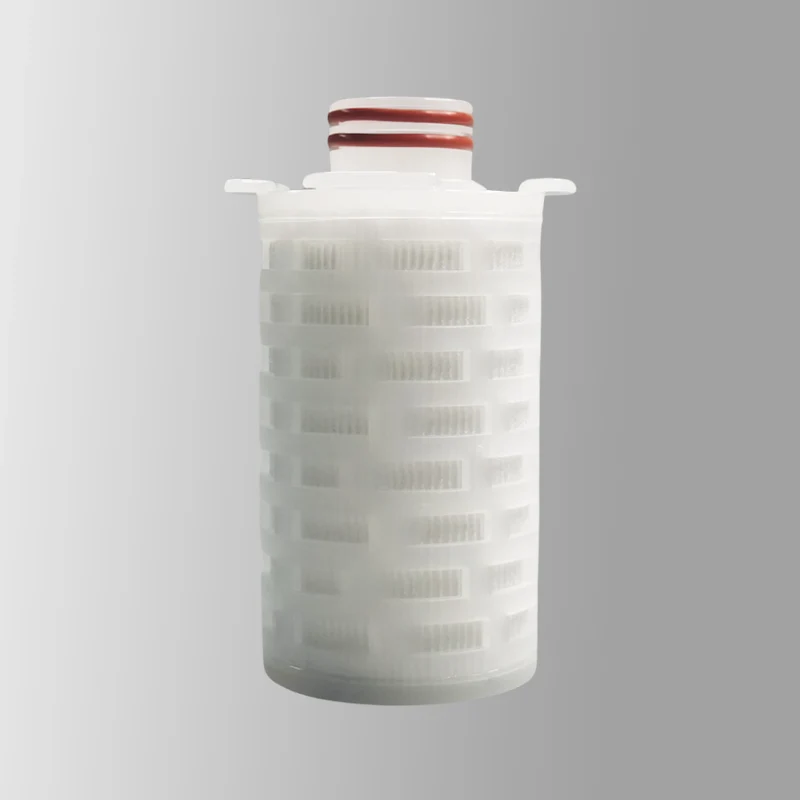

General Filtration Nylon Mini Filter Cartridge

Benefits

·100% integrity tested

·FDA food contact compliant

·Thermal bonding

·Non-fiber releasing

Filter Area:

H: 600cm^2 S:1350cm^2

D:2000cm^2 L:2650cm^2

Typical Applications

·Bottled Water

·Vinegar

·Aqueous solutions

·Beer, Wine and Spirits

·Juice ,Soft Drinks,Edible Oils

·Pharmaceutical intermediates

Integrity Test Specifications

Wetted membrane

Maximum Operating Parameters

Differential Pressure

·Forward 80 psid (5.5 barg)at 20℃(68°℉)

· Reverse 40 psid (3.1 barg) at 44 ℃(75°℉)

Operating Temperature 82 ℃(180 °℉) at 10 psid(6.9 barg)

Recommended ChangeoutPressure:35psid(2.4barg)

Construction Materials

Filter Membrane:ePTFE Membrane

Media Support:Polypropylene

End Caps:Polypropylene with embedded 316 ring

Inner Core: SUS 316L perforated core

Outer Cage: Polypropylene

Sealing Method: Thermal Bonding

O-rings: Buna, Viton(or FKM), EP, Silicone,

Encapsulated Silicone,

Encapsulated Viton (or FKM)

Toxicity

All components meet the specifications for biological safety per USP Class VI-121'C for plastics.

Food Safety Compliance

Materials of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations, 21CFR.

Materials used to produce filter media and hardware are safe for use in contact with foodstuffs in accordance with EU Directives 10/2011

Sanitization/Sterilization

Filtered Hot Water 90 ℃(194 °℉), 30 minutes, multiple cycles, max 3 psid forward flow

Autoclave 121℃ (250 °℉), 30 min, multiple cycles

Ordering Information
