Sterilizing Capsule Filter PVDF Membrane

1)Sterilizing Capsule Filter PVDF Membrane

Summary

Buy Sterilizing Capsule Filter PVDF Membrane from MS for double layer hydrophilic PVDF filtration designed for higher control steps and improved loading tolerance. The vent connection supports on line integrity testing. The membrane is produced without adhesives, binders, or surfactants and rinsed with high purity water to help reduce extractables, supporting clean downstream performance.

Introduction

Request pricing for Sterilizing Capsule Filter PVDF Membrane from MS when you want a double layer PVDF structure to better handle variable contamination and help maintain stable throughput. This capsule format supports verification routines via the vent connection, which can reduce disassembly steps during integrity workflows. In many qualification oriented lines, the product is selected for staged interception and low extractables intent.

Buyer Comparison: PVDF vs PTFE vs Nylon

If your priority is hydrophobic gas venting or harsh solvent resistance, PTFE is typically evaluated first.

If you need naturally hydrophilic start up and strong flow in many aqueous services, Nylon is often considered.

If you want hydrophilic membrane behavior with low protein adsorption intent and low extractables focus, PVDF is frequently chosen.

Application intent

Beverages: double layer media can help manage occasional turbidity spikes without immediate blockage.

Fine Chemicals: staged capture supports steadier differential pressure behavior.

Pharmaceuticals / Biologics: used where a more robust membrane structure helps reduce changeout frequency.

Antibiotics / Serums: selected when product cleanliness and stable filtration behavior are important.

Filtration Area and Strength

Filtration Area: 6000 cm² / 10"

Minimum burst pressure: 123.5 psi (8.5 barg)

Materials of Construction

Filter Media: Double layer hydrophilic PVDF

Media Support: Polypropylene

End Caps: Polypropylene

Inner Core: Polypropylene

Outer Cage: Polypropylene

Compliance

USP Class VI 121°C plastics

FDA 21 CFR and EU 10/2011 basis

Integrity (Wetted membrane)

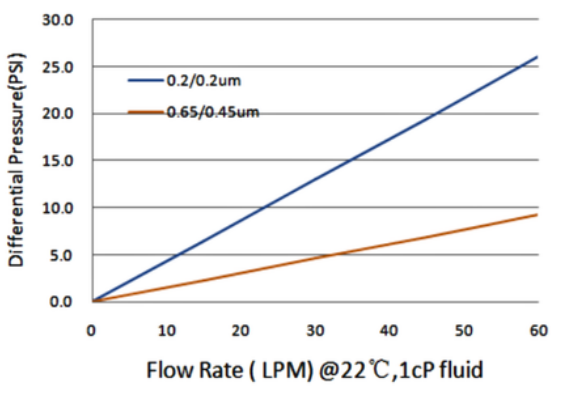

Typical Flow Rate

Typical Flow Rate in gas/air, 10"

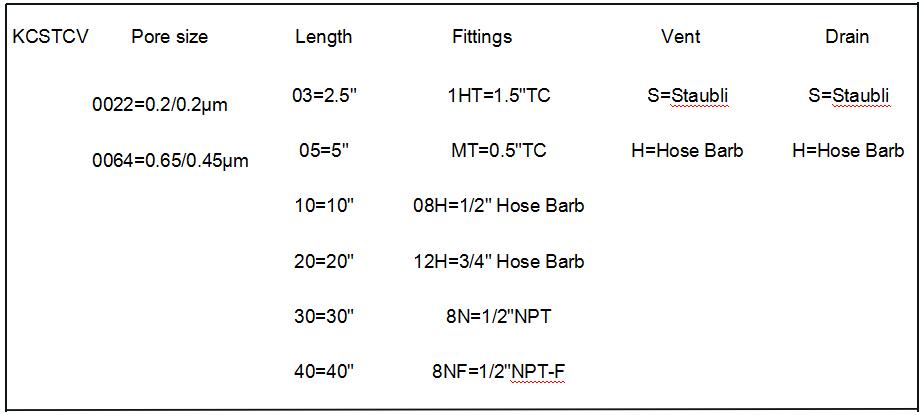

Ordering Information

Request pricing for Sterilizing Capsule Filter PVDF Membrane by sending the pore rating pair, connection, and length to MS. We will confirm the selection and reply with lead time and order details.
