KleapCap T-line PES membrane Capsule Filter General Application Grade

6)

Summary

Order KleapCap T-line PES membrane Capsule Filter General Application Grade from MS factory for versatile inline clarification and particle reduction in compact process systems. This single layer hydrophilic PES capsule offers a wide pore size range from 0.05 μm to 1.2 μm, 0.6 m² per 10 inch high flux area, and space saving T-line geometry, making it a flexible solution for general filtration duties where installation space is limited.

Introduction

Buy KleapCap T-line PES membrane Capsule Filter General Application Grade from MS factory when you need a dependable inline PES capsule for general purpose clarification, prefiltration, and particle reduction across diverse process liquids. The filters are constructed of single layer hydrophilic polyethersulfone membrane in an all polypropylene construction, offering broad chemical compatibility, high flow rate at low pressure drop, and low extractables. The polyethersulfone is particularly suitable for the filtration of products that contain substances which adsorb to the membrane itself, and the low protein binding characteristics of PES make it a good choice for filtration of valuable protein solutions such as vaccines and biologicals.

The T-line inline design is optimized for compact skid integration, with aligned inlet and outlet connections that minimize piping complexity and installation footprint. With pore sizes ranging from 0.05 μm to 1.2 μm, this general application capsule can handle everything from fine clarification to coarse particle removal in a single format family, making it ideal for multi product production lines where flexibility is valued.

T-Line Format vs. Conventional Capsule Design

Flexibility for Multi Product Production Lines

With pore sizes ranging from 0.05 μm to 1.2 μm, this general application T-line capsule can handle everything from fine clarification to coarse particle removal in a single format family. For facilities that run multiple products on the same line, this means operators can change the pore size rating without changing the housing type or installation procedure. The common T-line geometry simplifies changeover between campaigns, reduces the number of spare part numbers, and supports standardized operator training across all filtration points.

The inline format is especially valuable for mobile filtration carts and modular process systems that are reconfigured between products. The straight through connections make plumbing simpler and the compact footprint allows more capsules to be mounted on a single cart frame.

Technical Specifications

Construction Materials

•Filter Media: Polyethersulfone (PES)

•Media Support: Polypropylene

•End Caps: Polypropylene

•Inner Core: Polypropylene

•Outer Cage: Polypropylene

Food Safety Compliance

All wetted materials adhere to FDA 21 CFR food contact specifications and meet EU 10/2011 requirements for foodstuff contact applications, ensuring safe use in food and beverage processing environments.

Integrity Data (Wetted Membrane)

OEM and System Integrator Programs

For original equipment manufacturers and system integrators, MS factory offers dedicated support for KleapCap T-line PES membrane Capsule Filter General Application Grade integration. This includes custom connection configurations to match your equipment design, dimensional drawings for mechanical layout, flow performance data for system sizing, private label branding for resale programs, and stable batch supply for production builds. Our engineering team can collaborate with your design team to optimize capsule placement, spacing, and accessibility within your equipment enclosure.

ISO 9001 certification, USP Class VI report, and per-batch COA available on request..

Typical Applications

General application T-line PES capsules serve inline clarification in compact media preparation skids, space efficient prefiltration for parenteral production, general inline clarification for API and excipient transfer systems, particle removal for reagent manufacturing in compact filling equipment, low protein binding inline clarification for serum products, prefiltration and polishing in compact water distribution modules, inline clarification for craft beverage processing, compact pre filling filtration for juice and beverage transfer lines, and inline prefiltration for modular bottled water systems.

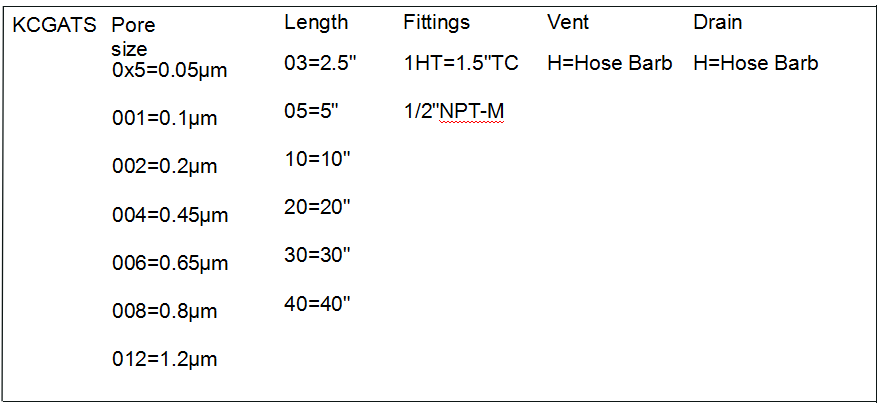

Ordering Information
