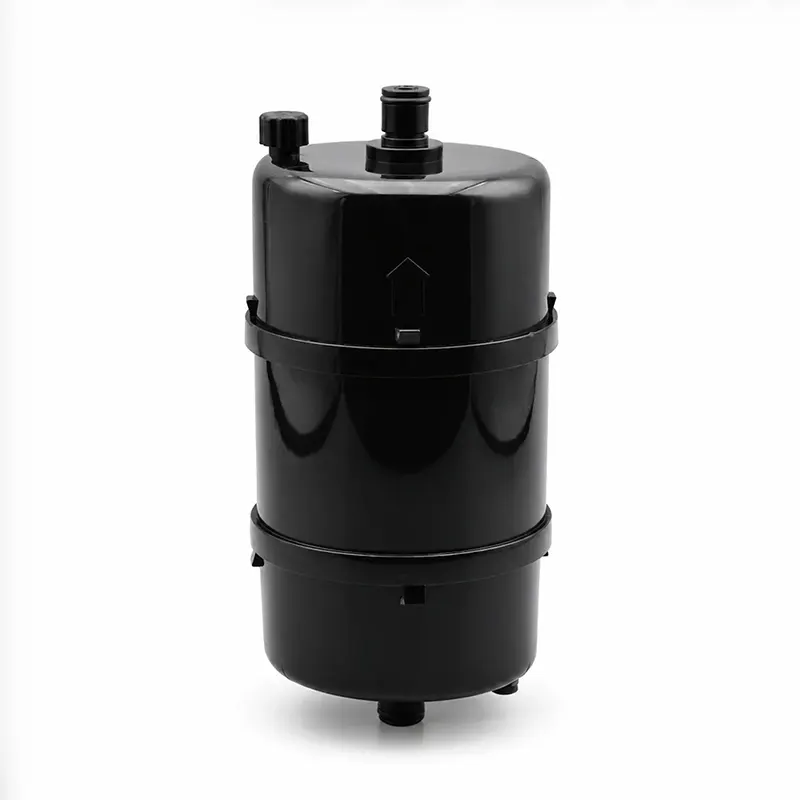

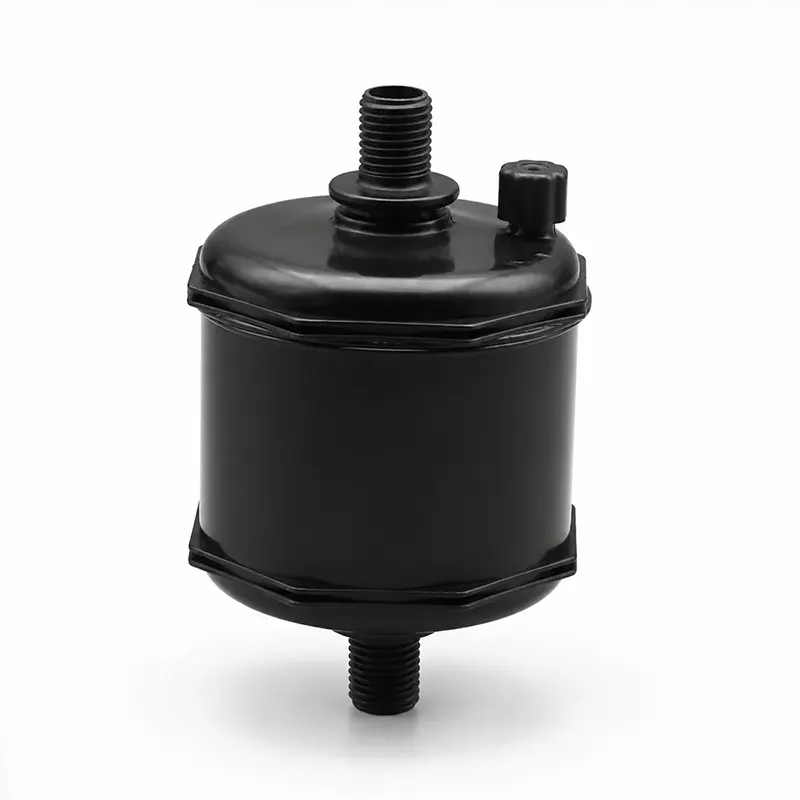

High Precision Grade Inkleen Ink Capsule Filter

Request pricing for High Precision Grade Inkleen Ink Capsule Filter from MS factory when your high resolution printing system requires more stringent particle control than standard grade ink filters can provide. The Inkleen high precision grade is constructed with PTFE filter membrane in an all polypropylene capsule housing, using thermal bonding to seal the media pack without adhesives or binders. This construction provides excellent chemical compatibility with ink formulations, consistent finer particle retention, and clean filtration performance without extractables that could affect ink chemistry or print quality in high resolution printing applications.

The high precision grade is specifically designed for applications demanding exceptional print detail and maximum print head protection, such as high resolution graphics printing, fine art reproduction, photographic printing, and industrial printing with advanced print head technologies that use smaller nozzle diameters and higher droplet placement precision. In these applications, even submicron particulates that might pass through a standard grade filter can cause visible print defects or nozzle clogging. The Inkleen high precision grade addresses this with finer pore size rating and more stringent particle retention, providing the level of filtration precision required for demanding high resolution printing.

Technical Specifications

Construction Materials

• Filter Membrane: PTFE

• Media Support: Polypropylene

• End Caps: Polypropylene

• Inner Core: Polypropylene

• Outer Cage: Polypropylene

• Sealing Method: Thermal Bonding

Precision Filtration Advantages

•  Finer particle retention. Uses finer pore size rating than standard grade, capturing smaller particulates that could affect high resolution print quality or clog advanced print head nozzle arrays.

•  Broad ink compatibility. The PTFE membrane resists attack from solvent based, water based, and UV curable ink chemistries, while the all polypropylene housing maintains structural integrity across diverse printing fluid environments in high resolution applications.

•  High dirt holding capacity. Pleated PTFE membrane structure provides large effective filtration area that supports longer service life even with finer pore size rating, reducing changeout frequency in high volume production printing.

•  High retention consistency. PTFE membrane provides consistent particle retention across the rated pore size range, ensuring reliable filtration performance that high resolution printing requires for consistent print quality.

•  Thermal bonding, non fiber releasing. Media pack sealed without adhesives, and capsule designed to minimize fiber shedding, ensuring clean ink delivery essential for high resolution print quality and print head protection.

Application Scenarios

•  High resolution graphics printing. In wide format and high resolution graphics printing where fine detail reproduction and color accuracy are critical, the Inkleen high precision grade provides the level of particle control needed to ensure consistent print quality across large format output. Finer retention captures particulates that could cause visible banding or streaking.

•  Fine art and photographic reproduction. In fine art printing and photographic reproduction where print quality is the primary product, the high precision grade helps ensure every print meets exacting standards of artists and photographers. Precise particle control minimizes risk of print defects that could ruin limited edition prints or photographic output.

•  Advanced digital printing technologies. In industrial and commercial printing operations using advanced print head technologies with smaller nozzle diameters and higher droplet precision, the high precision grade provides filtration precision these technologies require. Finer particle retention helps protect valuable print head investment, making High Precision Grade Inkleen Ink Capsule Filter suitable for demanding high resolution printing applications.

Food Safety Compliance

Every wetted component in the Inkleen high precision grade has been validated against FDA food contact criteria under Title 21 CFR, and the PTFE membrane plus polypropylene hardware satisfy EU Directive 10/2011 material safety requirements for articles intended to come into contact with foodstuffs. This compliance foundation supports use in printing operations that produce food packaging labels, edible image substrates, and other food adjacent printed products where material safety documentation may be requested by customers or regulatory auditors.

Quality Assurance and OEM Support

For the Inkleen high precision grade, MS factory applies strict incoming material inspection, in process quality checks, and final performance verification to ensure consistent filtration precision for high resolution printing. Each production batch carries a unique traceability identifier linking raw material lots, production parameters, and inspection records. Material compliance documentation and inspection reports are available to support customer qualification files, including food packaging printed materials where required. For OEMs of high resolution printing systems, we offer custom branding, packaging, connection configurations, and technical support for mechanical integration and pore size selection. For high resolution printing operations that demand exceptional print detail and maximum print head protection, the filtration precision and reliable performance meet the requirements of these demanding applications, making High Precision Grade Inkleen Ink Capsule Filter the preferred choice for high resolution printing operations.

Ordering Information
