General Application TC Capsule Filters Hydrophobic ePTFE Membrane

3) General Application TC Capsule Filters Hydrophobic ePTFE Membrane

Summary

Get a quote for General Application TC Capsule Filters Hydrophobic ePTFE Membrane from MS for compact inline gas and solvent filtration where space constraints and simplified installation are priorities. The thermally bonded ePTFE capsule provides hydrophobic performance and chemical resistance in a space-efficient format ideal for instrument air, pilot plant and laboratory use.

Introduction

MS is a professional General Application TC Capsule Filters Hydrophobic ePTFE Membrane manufacturer. The TC (tri-clamp) connection standard matches sanitary fittings in pharmaceutical, food and biotech facilities. The hydrophobic ePTFE membrane delivers the same chemical resistance and moisture rejection as larger formats in a reduced footprint that simplifies integration into existing systems and mobile equipment.

Application Guidance: Where the Compact Format Helps

Laboratory instrument air: point-of-use filtration protects analytical detectors from particulate and moisture.

Pilot plant gas feeds: small footprint suits multiple use points on skid-mounted systems.

Small vessel venting: compact sterile vent for reactors and storage vessels.

Portable equipment: lightweight, easy field replacement without special tools.

Selection Guide: TC Compact vs Full-Size

Pick the TC compact format when space is limited, flow is modest, or the application is at point-of-use.

Pick a full-size capsule when higher throughput or longer change-out intervals are required.

Materials of Construction

Filter Membrane: ePTFE (single layer)

Media Support: Polypropylene

End Caps: Polypropylene

Inner Core: Polypropylene

Outer Cage: Polypropylene

Sealing Method: Thermal Bonding

Capsule Integrity

Minimum burst pressure: 123.5 psi (8.5 barg)

Sanitization / Sterilization

Filtered hot water 90°C (194°F), 30 min, multiple cycles, max 3 psid forward flow.

Autoclave 121°C (250°F), 30 min, multiple cycles.

Compliance

USP Class VI 121°C plasticsFDA 21 CFR and EU 10/2011 basis

Integrity (water-wetted membrane)

222

Typical Flow Rate, 1" TC, 2.5"

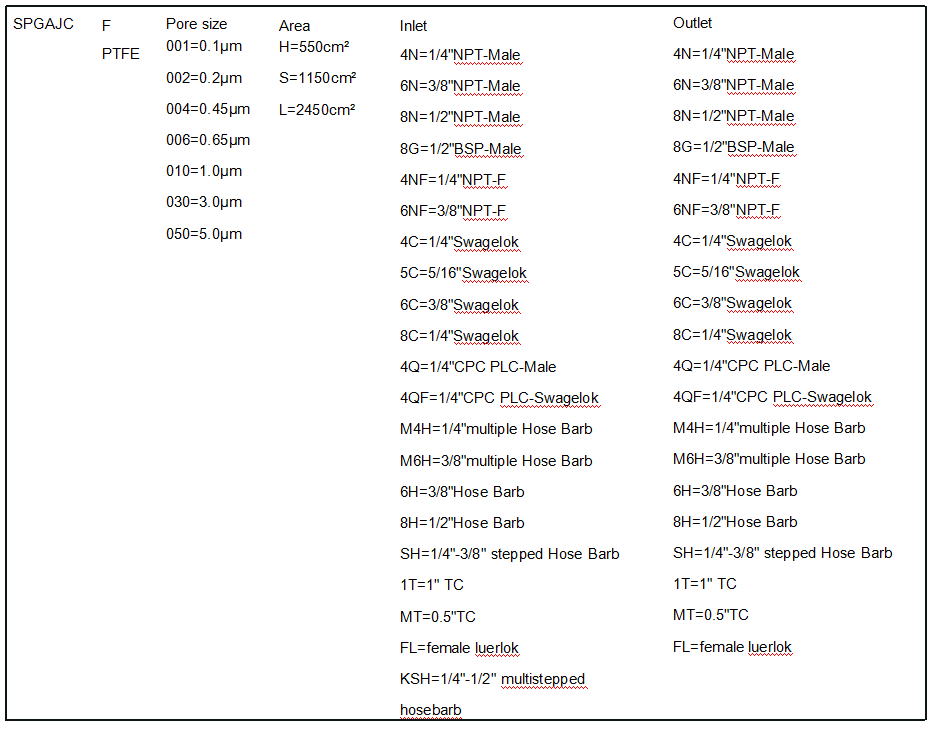

Ordering Information

To order General Application TC Capsule Filters Hydrophobic ePTFE Membrane, specify pore size, connection type (1" TC or 2.5"), and quantity, including gas type, flow rate and pressure for configuration confirmation.
