Bio Reduction Capsule Filter PVDF Membrane

1)Bio Reduction Capsule Filter PVDF Membrane

Summary

Source Bio Reduction Capsule Filter PVDF Membrane from MS for clean, hydrophilic PVDF filtration where low extractables, stable flow, and verification friendly operation are required. This full size capsule includes a vent Staubli connection for on line integrity testing and is manufactured without adhesives, binders, or surfactants, then rinsed with high purity water to help reduce extractables and downtime.

Introduction

Order Bio Reduction Capsule Filter PVDF Membrane from MS when your process needs a single layer hydrophilic PVDF capsule that emphasizes downstream cleanliness and practical validation routines. The manufacturing approach avoids adhesives, binders, and surfactants, and each capsule is rinsed with high purity water to support low extractables intent. With a vent connection that supports on line integrity test, it is suitable for controlled production environments.

Who this product fits best

Buyers who want hydrophilic PVDF for aqueous processing and low extractables targets

Plants that prefer on line integrity verification through a vent port

Skids where a full size capsule area is needed for throughput stability

Application Notes: Typical Use Cases

Beverages: helps reduce particulate haze and protect downstream filling stability.

Fine Chemicals: supports cleanliness focused filtration where leachables are a concern.

Pharmaceuticals: used for process protection steps where documentation matters.

Biologics: can be used to reduce particle burden before sensitive downstream operations.

Antibiotics / Serums: chosen when low extractables intent and stable flux are valued.

Gas filtration: only when process conditions and SOP confirm suitability for PVDF use.

Technical Specifications

Filtration Area: 6000 cm² / 10"

Capsule Integrity: Minimum burst pressure 123.5 psi (8.5 barg)

Toxity: USP Class VI 121°C plastics

Materials of Construction

Filter Media: Hydrophilic PVDF

Media Support: Polypropylene

End Caps: Polypropylene

Inner Core: Polypropylene

Outer Cage: Polypropylene

Food Safety Compliance

FDA 21 CFR food contact basis and EU 10/2011 expectations for materials used.

Integrity (Wetted membrane)

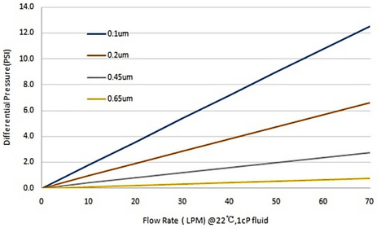

Typical Flow Rate

Typical Flow Rate in gas/air, 10"

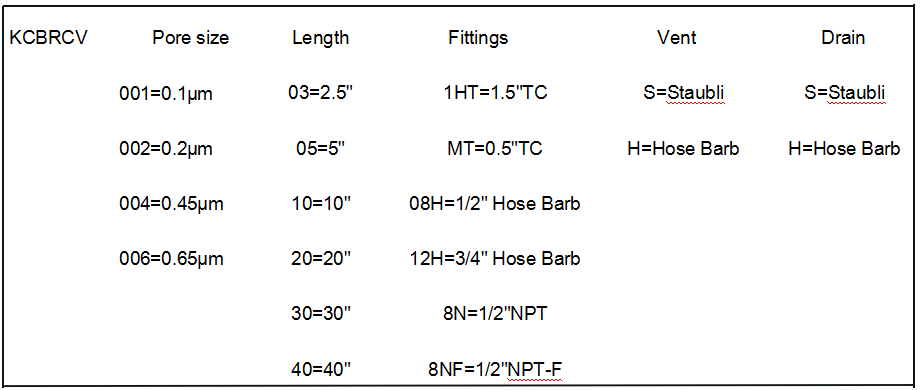

Ordering Information

To order Bio Reduction Capsule Filter PVDF Membrane, please confirm pore size, connection type, and capsule length. MS will verify the configuration and provide a formal quotation.
